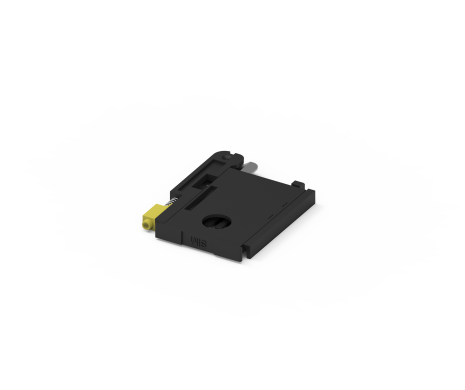

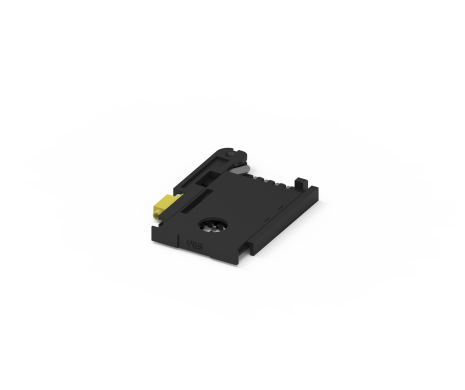

SIM Card Socket, 8 Pin Bar-push Type
115T-BAB1
SIM Card Socket, Bar Push Type, 8 Pin, w/Switch, w/post 1u''
SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) number securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of mini SIM, Micro SIM and Nano SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) number securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of mini SIM, Micro SIM and Nano SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
Share:
功能介紹
APPLICATION:
- IIOT
- WIFI Module
- Smart Meter
- LTE Router
- IPC / POS
- Vehicle Tracking
規格介紹
<div class="template-table-wrap">
<div class="template-table">
<table class="reset">
<caption>ELECTRICAL</caption>
<tbody>
<tr>
<th>Current</th>
<td>1A Max, 10u A Min.</td>
</tr>
<tr>
<th>Voltage</th>
<td>50V Max</td>
</tr>
<tr>
<th>Contact Resistance</th>
<td>50mΩ</td>
</tr>
<tr>
<th>Insulation Resistance</th>
<td>1,000MΩ / 500V DC</td>
</tr>
<tr>
<th>Dielectric Withstanding Voltage</th>
<td>500V AC at 1 minute</td>
</tr>
</tbody>
</table>
</div>
<div class="template-table">
<table class="reset">
<caption>MECHANICAL</caption>
<tbody>
<tr>
<th>Durability</th>
<td>5,000 Cycle Min.</td>
</tr>
<tr>
<th>Press Force</th>
<td>0.5N</td>
</tr>
</tbody>
</table>
</div>
<div class="template-table">
<table class="reset">
<caption>ENVIRONMENTAL</caption>
<tbody>
<tr>
<th>Operating temperature range</th>
<td>-40℃~+85℃</td>
</tr>
<tr>
<th>Storage temperature range</th>
<td>-40℃~+85℃</td>
</tr>
</tbody>
</table>
</div>
<div class="template-table">
<table class="reset">
<caption>SOLDER ABILITY</caption>
<tbody>
<tr>
<th>Recommended IR-Reflow Temperature</th>
<td>260℃ 10Sec</td>
</tr>
</tbody>
</table>
</div>
</div>
<div class="template-table">
<table class="reset">
<caption>ELECTRICAL</caption>
<tbody>
<tr>
<th>Current</th>
<td>1A Max, 10u A Min.</td>
</tr>
<tr>
<th>Voltage</th>
<td>50V Max</td>
</tr>
<tr>
<th>Contact Resistance</th>
<td>50mΩ</td>
</tr>
<tr>
<th>Insulation Resistance</th>
<td>1,000MΩ / 500V DC</td>
</tr>
<tr>
<th>Dielectric Withstanding Voltage</th>
<td>500V AC at 1 minute</td>
</tr>
</tbody>
</table>
</div>
<div class="template-table">
<table class="reset">
<caption>MECHANICAL</caption>
<tbody>
<tr>
<th>Durability</th>
<td>5,000 Cycle Min.</td>
</tr>
<tr>
<th>Press Force</th>
<td>0.5N</td>
</tr>
</tbody>
</table>
</div>
<div class="template-table">
<table class="reset">
<caption>ENVIRONMENTAL</caption>
<tbody>
<tr>
<th>Operating temperature range</th>
<td>-40℃~+85℃</td>
</tr>
<tr>
<th>Storage temperature range</th>
<td>-40℃~+85℃</td>
</tr>
</tbody>
</table>
</div>
<div class="template-table">
<table class="reset">
<caption>SOLDER ABILITY</caption>
<tbody>
<tr>
<th>Recommended IR-Reflow Temperature</th>
<td>260℃ 10Sec</td>
</tr>
</tbody>
</table>
</div>
</div>
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 115T-BAB1 | 145 KB | PDF: 工程用圖面 |  |
| 3D | 115T-BAB1 | 353 KB | RAR: 3D檔 | |
| 圖面 | 115-00004 | 49 KB | PDF: 工程用圖面 | |
| 規格書 | 115T Series Spec | 321 KB | PDF: 工程用圖面 | |
