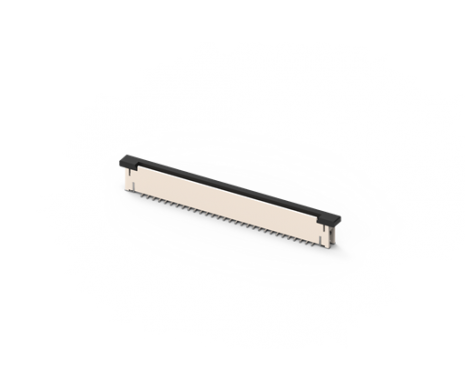

FPC Connector, Slide Type, Vertical, Pitch:0.5mm, H:5.95mm
312A-XXRAA-R
FPC Connector, Slide Type, Vertical, Pitch:0.5mm, H:5.95mm
Flexible Printed Circuit (FPC) Connector is suitable for the application which needs to connect serial or graphical LCD to the motherboard with the demand of limited space, smaller centerline or pitch spacing, because it’s lower profile heights, and lighter interconnect. ATTEND offers a wide range of pin options and mounting types for you to fit with your application design, including Slide and Flip-lock type.
Flexible Printed Circuit (FPC) Connector is suitable for the application which needs to connect serial or graphical LCD to the motherboard with the demand of limited space, smaller centerline or pitch spacing, because it’s lower profile heights, and lighter interconnect. ATTEND offers a wide range of pin options and mounting types for you to fit with your application design, including Slide and Flip-lock type.
Share:
規格介紹
| Sizes | 60 Pins For 0.3mm Thickness FFC/FPC |
|---|---|
| Voltage | 50V Max. Current 0.5A Max. |
| Contact Resistance | 20 Milliohms Max. |
| Insulation Resistance | 50 Megaohms Min. |
| Dielectric Withstanding Voltage | 250V AC |
| Temperature | -40℃~+85℃ |
| Housing | PA-46 UL 94V-0 |
|---|---|
| Actuator | PPS UL 94V-0 |
| Contact | Phosphor Bronze |
| Hold-down | Brass Plating: 100u" Tin, Over 50u" Ni |
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 312A-XXRAA-R | 357 KB | PDF: 工程用圖面 |  |
| 3D | 312A-XXRAA-R | 2029 KB | RAR: 3D檔 | |
