FPC, Flip-Lock, Pitch:0.3mm, H:1.0mm, Front Flip
317B-XXBAA

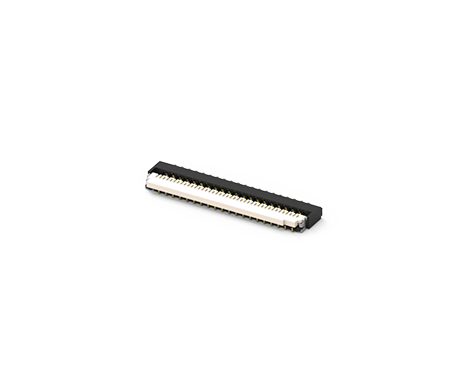

FPC Connector, Flip-Lock Type, Horizontal, Pitch:0.3mm, H:1.0mm, Front Flip
Flexible Printed Circuit (FPC) Connector is suitable for the application which needs to connect serial or graphical LCD to the motherboard with the demand of limited space, smaller centerline or pitch spacing, because it’s lower profile heights, and lighter interconnect. ATTEND offers a wide range of pin options and mounting types for you to fit with your application design, including Slide and Flip-lock type.
Flexible Printed Circuit (FPC) Connector is suitable for the application which needs to connect serial or graphical LCD to the motherboard with the demand of limited space, smaller centerline or pitch spacing, because it’s lower profile heights, and lighter interconnect. ATTEND offers a wide range of pin options and mounting types for you to fit with your application design, including Slide and Flip-lock type.
Share:
規格介紹
| Current Rating | 0.2A |
|---|---|
| Voltage Rating | 30V |
| Contact Resistance | 100mΩ max. |
| Insulation Resistance | 50MΩ at 100V DC |
| Dielectric Withstanding Voltage | 90V AC for 1 minute |
| Durability | 10 Cycle |
|---|---|
| FPC Resistance Force | 0.15N min. (per pin) |
| Operating temperature range | -55°C~+85°C |
|---|---|
| Storage temperature range | -55°C~+85°C |
| Recommended IR-Reflow Temperature | 260°C |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 317B-XXBAA | 262 KB | PDF: 工程用圖面 |  |
| 3D | 317B-XXBAA | 287 KB | RAR: 3D檔 | |
