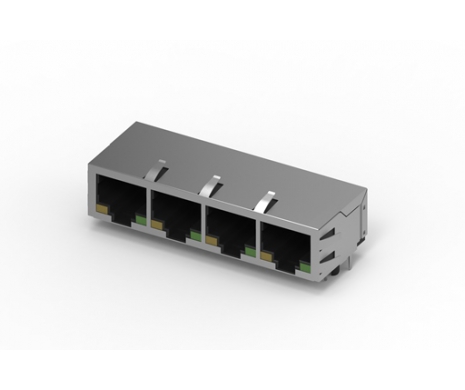

RJ45 1x4 R/A, Upper Latch, DIP, w/EMI / LED
211C-14CAA
1x4, Right Angle, Upper Latch, DIP, w/EMI / LED, 5u"
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
Share:
規格介紹
| Current Rating | 1.5A |
|---|---|
| Voltage Rating | 125VAC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 1000MΩ Min. at 500 VDC |
| Dielectric Withstanding Voltage | 1000VAC 60Hz 1 minute |
| LED Ratings | Forward Voltage: 2.2V Typical. |
| Reverse Voltage | 5V max. |
| Durability | 750 Cycle |
|---|---|
| PCB Retention Pre-Solder | 1 LB min. |
| PCB Retention Post-Solder | 10 LBS min. |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Storage temperature range | -40°C~+85°C |
| Wave Soldering Temp | 255°C to 260°C/ 5 to 10 sec. |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 211C-14CAA | 220 KB | PDF: 工程用圖面 |  |
| 3D | 211C-14CAA | 257 KB | RAR: 3D檔 | |
