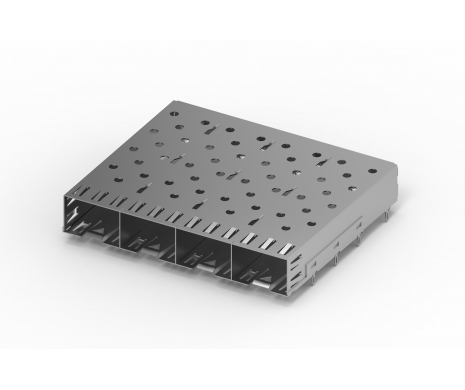

SFP Connector, Press Fit Type, 1x4 Cage
223A-1401
SFP Connector, Press Fit Type, 1x4 Cage
The small form-factor pluggable (SFP) is a compact, hot-pluggable network interface module used for both telecommunication and data communication applications. ATTEND offers a variety of SFP/SFP+/QSFP cage types that support 1Gbps to 40Gbps data rates for Gigabit Ethernet and Optical Fiber applications and compatible industry-wide standard SFP/ SFP+/ QSFP modules for your application usage to fit your high-speed networking request.
The small form-factor pluggable (SFP) is a compact, hot-pluggable network interface module used for both telecommunication and data communication applications. ATTEND offers a variety of SFP/SFP+/QSFP cage types that support 1Gbps to 40Gbps data rates for Gigabit Ethernet and Optical Fiber applications and compatible industry-wide standard SFP/ SFP+/ QSFP modules for your application usage to fit your high-speed networking request.
Share:
規格介紹
| Current Rating | 0.5A MAX. |
|---|---|
| Voltage Rating | 30V AC/DC |
| Contact Resistance | 20mΩ |
| Insulation Resistance | 500MΩ |
| Differential Impedance Voltage | 100Ω |
| Housing Material | LCP UL94V-0, Black |
|---|---|
| Contact Material | Phosphor Bronze, 0.2T |
| Operating Life | 250 Cycles Min. |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| IR Temperature | 255°C±5°C (5 to 10 sec) |
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 223A-1401 | 256 KB | PDF: 工程用圖面 |  |
| 圖面 | 223A-1401 | 437 KB | RAR: 3D檔 | |
