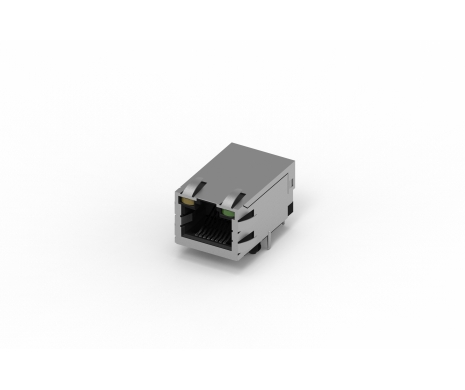

RJ45 R/A Upper Latch, DIP, w/EMI / LED
213A-11CAA-RA13
Right Angle, Upper Latch, DIP, w/EMI / LED
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
Share:
規格介紹
| Current Rating | 1.5A per pin |
|---|---|
| Voltage Rating | 125V DC per pin |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 1000VAC |
| Terminal Durability | 750 Cycle |
|---|
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended Wave Soldering Temperature | 260℃ |
|---|---|
| Recommended PCB Thickness | 1.6mm |
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 213A-11CAA-RA13 | 283 KB | PDF: 工程用圖面 |  |
