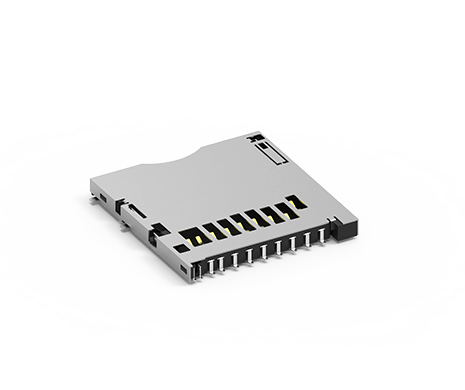

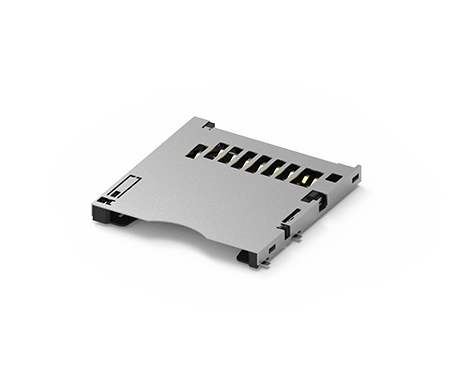

SD Card Socket, Reverse Push-Push Type, w/switch
104D-RCA0-RA1
SD Card Socket, Reverse Push-Push Type w/switch, 5u''
The Secure Digital Memory Card becomes a standard application for different industries since it’s first launched in the market with a variety of sizes to fit in different usage. Today, SD / Micro SD card become the standard portable storage solution. ATTEND's SD / Micro SD card socket featured a durable design in multiple types, such as push-pull, hinge, push-push, and combo (Micro SD+SIM) type.
The Secure Digital Memory Card becomes a standard application for different industries since it’s first launched in the market with a variety of sizes to fit in different usage. Today, SD / Micro SD card become the standard portable storage solution. ATTEND's SD / Micro SD card socket featured a durable design in multiple types, such as push-pull, hinge, push-push, and combo (Micro SD+SIM) type.
Share:
功能介紹
APPLICATION:
- Mobile Devices
- POS Terminals
- IIoT Applications
- Security Systems
- Drive Recorders
規格介紹
| Current Rating | 0.5A MAX. |
|---|---|
| Voltage Rating | 100V AC |
| Contact Resistance | 100mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500V AC |
| Contact Retention Force | 0.25kgf Min. |
|---|---|
| Insertion Force | 4.2kgf Max. |
| Withdrawal Force | 0.21kgf Min. |
| Durability | 5,000 Cycles |
| Operating temperature range | -20℃~+85℃ |
|---|
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 104D-RCA0-RA1 | 352 KB | PDF: 工程用圖面 |  |
| 3D | 104D-RCA0-RA1 | 574 KB | RAR: 3D檔 | |
| 規格書 | 104D-RCA0-RA1 | 340 KB | PDF:規格書 | |
