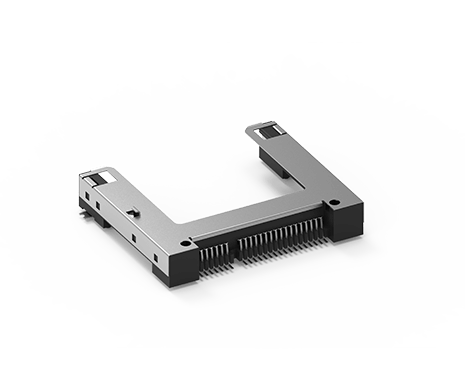

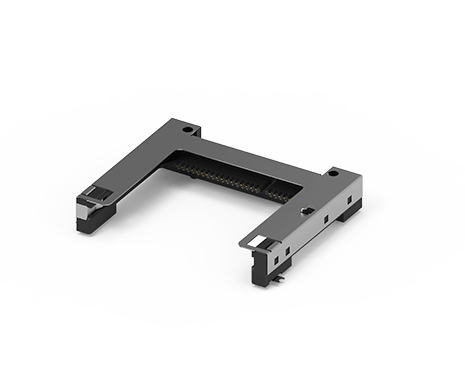

CFAST Socket Push-Pull Type, w/o Lock, H=8.05mm
120A-835D00
CFAST Card connector, Push-Pull Type, without Lock, H=8.05mm, 10u"
Offer a portable, mass-storage and compact size usage for digital recode devices, the CompactFlash family storage card is one of the success standards in the market of the early memory card formats. And to solve the large data transfer, CompactFast has been launched as a variant of CompactFlash that supports a higher maximum transfer rate. They are the most popular storage in many professional devices and high-end consumer devices today. ATTEND offers a full range of CF / CFast family connector for your product solution.
Offer a portable, mass-storage and compact size usage for digital recode devices, the CompactFlash family storage card is one of the success standards in the market of the early memory card formats. And to solve the large data transfer, CompactFast has been launched as a variant of CompactFlash that supports a higher maximum transfer rate. They are the most popular storage in many professional devices and high-end consumer devices today. ATTEND offers a full range of CF / CFast family connector for your product solution.
Share:
規格介紹
Current Rating | 1.5A |
---|---|
Voltage Rating | 100V AC/DC |
Contact Resistance | 30mΩ |
Insulation Resistance | 1000MΩ |
Dielectric Withstanding Voltage | 500V DC |
Durability | 10,000 Cycle |
---|---|
Insertion Force | 28.8N max. |
Extraction Force | 3.7~24.5N max. |
Operating temperature range | -40℃~+85℃ |
---|---|
Storage temperature range | -40℃~+85℃ |
Recommended IR Reflow Temperature | 260℃ |
---|
