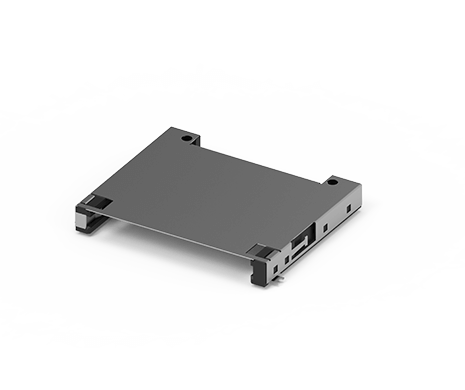

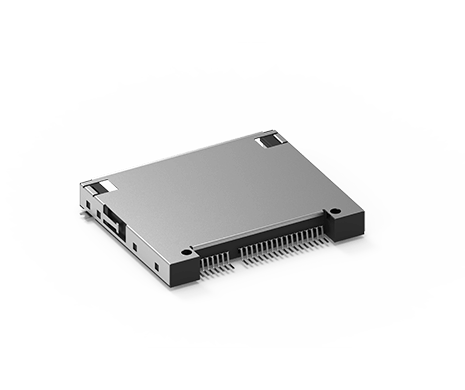

CFAST Socket Push-Push Type, H=6.05mm
120C-605D00
CFAST Socket, Push-Push Type, H=6.05mm, 10u''
CFast is a variant of CompactFlash base on the Serial ATA bus, with a 7-pin data connector and 17-pin power connector. CFast and CF cards are not directly compatible, but an adaptor can be used. The CFast offering a high-speed transmission up to 300MB/s(CFast 1.0/1.1) and 600MB/s(CFast 2.0), ATTEND provides a varied range and ruggedness of CFast connectors including the Push-Pull, Slim, and vertical type.
CFast is a variant of CompactFlash base on the Serial ATA bus, with a 7-pin data connector and 17-pin power connector. CFast and CF cards are not directly compatible, but an adaptor can be used. The CFast offering a high-speed transmission up to 300MB/s(CFast 1.0/1.1) and 600MB/s(CFast 2.0), ATTEND provides a varied range and ruggedness of CFast connectors including the Push-Pull, Slim, and vertical type.
Share:
規格介紹
| Current Rating | 1.5A |
|---|---|
| Voltage Rating | 100V AC/DC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500V DC |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 28.8N max. |
| Extraction Force | 3.7~24.5N max. |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow Temperature | 260℃ |
|---|
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 120C-605D00 | 134 KB | PDF: 工程用圖面 |  |
| 規格書 | 120C-605D00 | 350 KB | PDF:規格書 | |
| 3D | 120C-605D00 | 144 KB | RAR: 3D檔 | |
