HDMI Connector A Type, R/A SMT Type
206A-SABN

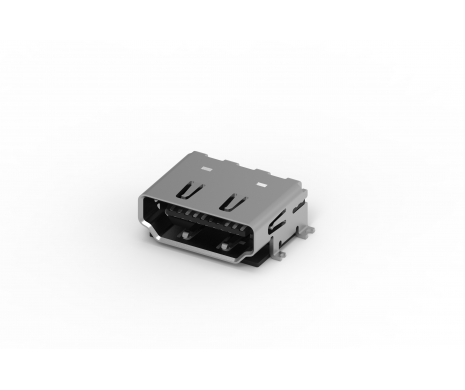

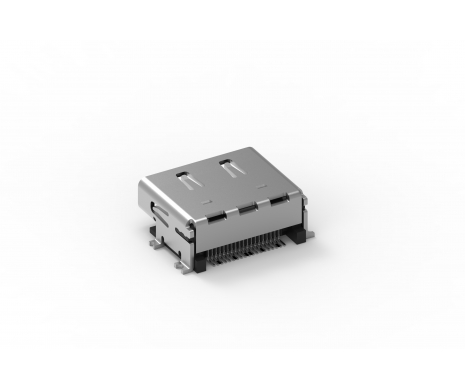

HDMI Connector , A Type Receptacle, Right Angle, SMT, With Peg, 15u"
HDMI stands for High Definition Multimedia Interface. It is capable of sending higher quality information to a device than its analog counterparts. The information which sent over via HDMI is uncompressed digital video/audio data, because it could transfer the video/audio signal in a single cable same time, that could save PCB design space effectively.
HDMI stands for High Definition Multimedia Interface. It is capable of sending higher quality information to a device than its analog counterparts. The information which sent over via HDMI is uncompressed digital video/audio data, because it could transfer the video/audio signal in a single cable same time, that could save PCB design space effectively.
Share:
規格介紹
| Insulation Material | L.C.P.+30% Glass Filled, UL94V-0, Black |
|---|---|
| Contact Material | Brass (C2680-EH), t=0.2mm |
| Shell Material | SPCC |
| Contact Area Plated | 15u" Gold for One Side Plated Over 50u" Nickel |
| Solder Plated | 100u" Tin Plated |
| Shell Plated | 50u" Nicket Plated |
|---|---|
| Current Rating | 0.5 Apm Min. |
| Insulation Resistance | Unmated: 100 MΩ Min. Mated: 10 MΩ Min. |
| Contact Resistance | 10mΩ max. |
| Dielectric Withstanding Voltage | 300V AC |
| Operation Temperature | -20℃ TO +85℃ |
