Dual Nano SIM Socket,Tray Eject Type
115S-BS00

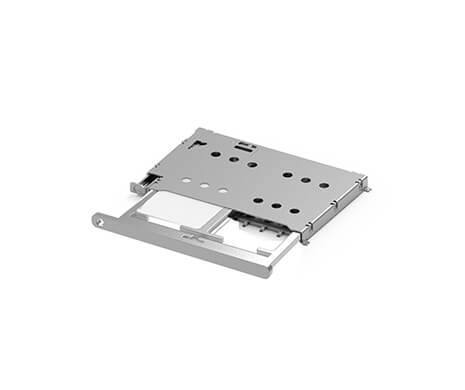

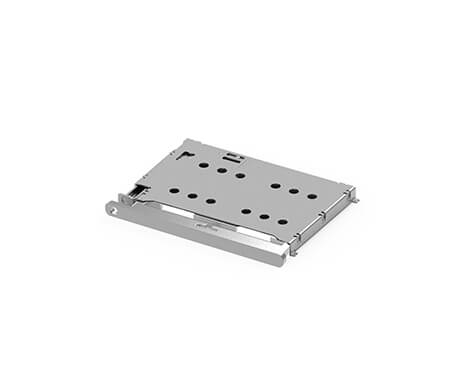

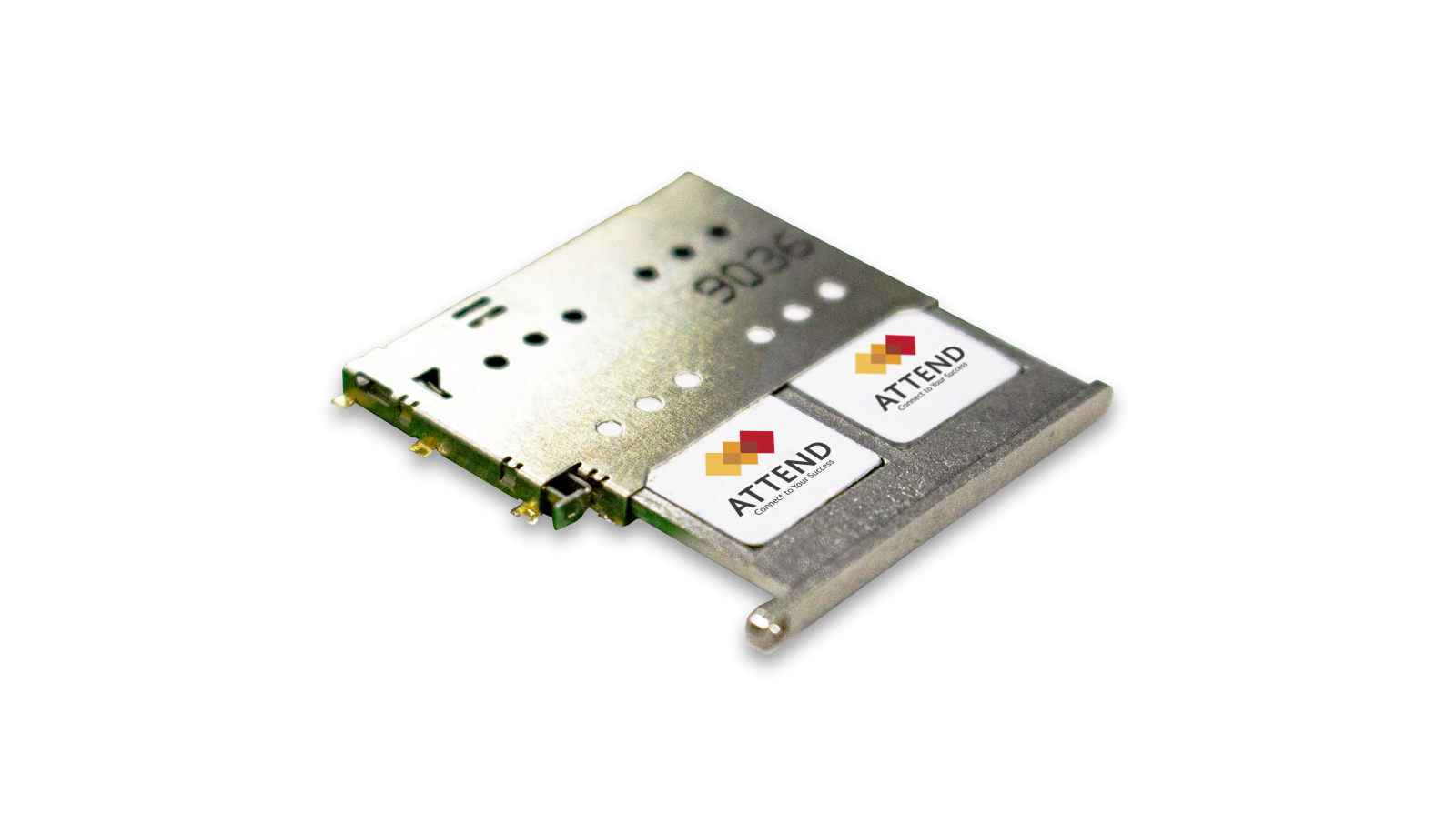

Nano SIM Socket Dual Card Tray Eject Type
The Nano SIM (also known as the 4FF) card only measure 12.3 × 8.8 × 0.67 mm, the original design purpose was fit the mobile device. Even it reduces the area, it still maintaining the existing contact arrangements and provide all designer another solution to saving the cost in PCB layout design. As the professional communication solution provider, ATTEND Tech offering the maximizing options to fit with any request, including the bar push eject type with multiple tray option, push-push type, hinge type and dual bar push eject type.
The Nano SIM (also known as the 4FF) card only measure 12.3 × 8.8 × 0.67 mm, the original design purpose was fit the mobile device. Even it reduces the area, it still maintaining the existing contact arrangements and provide all designer another solution to saving the cost in PCB layout design. As the professional communication solution provider, ATTEND Tech offering the maximizing options to fit with any request, including the bar push eject type with multiple tray option, push-push type, hinge type and dual bar push eject type.
Share:
功能介紹

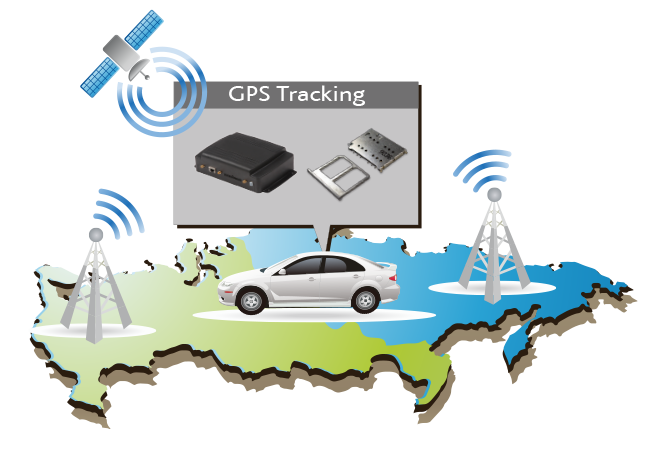

Interstate vehicle tracking solution
Reliable for vehicle tracking signal solution with a slim and compact design. The mechanical lock design can provide the best smooth and stable insert and eject operation, combine with the unique sunk push bar design that avoids the shifting issue during the user operation.
Reliable for vehicle tracking signal solution with a slim and compact design. The mechanical lock design can provide the best smooth and stable insert and eject operation, combine with the unique sunk push bar design that avoids the shifting issue during the user operation.
Symmetric Placement Slot Design
To decrease the damage during the nano-SIM card switch, we modify the common slot from the vertical placement to horizontal symmetric, now you don't have to worry about the inner SIM always face the double damage than other.
To decrease the damage during the nano-SIM card switch, we modify the common slot from the vertical placement to horizontal symmetric, now you don't have to worry about the inner SIM always face the double damage than other.
Upgrade Tray of Version 2
Clip Nano SIM card in the Tray, when we insert the SIM tray upside down or vertical position, do not worry drop SIM card.
Clip Nano SIM card in the Tray, when we insert the SIM tray upside down or vertical position, do not worry drop SIM card.
規格介紹
| Current Rating | 0.5A max. |
|---|---|
| Voltage Rating | 10VAC/DC |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 2,000 Cycle |
|---|---|
| Tray Insertion Force | 10N max. |
| Tray Extraction Force | 3N min. |
| Contact Normal Force | 0.2N min. per pin |
| Operating temperature range | -40°C~+105°C |
|---|---|
| Storage temperature range | -40°C~+105°C |
| Recommended IR Reflow Temperature |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 115S-BS00 | 641 KB | PDF: 工程用圖面 |  |
| 3D | 115S-BS00 & 115S-BT02 | 599 KB | RAR: 3D檔 | |
| 圖面 | 115S-BT00 | 85 KB | PDF: 工程用圖面 | |
| 規格書 | 115S-BS00 | 314 KB | PDF:規格書 | |
| 圖面 | 115S-BT02A | 91 KB | PDF: 工程用圖面 | |
| 圖面 | 115S-BT02 | 87 KB | PDF: 工程用圖面 | |
| 圖面 | 115S-BT00A | 91 KB | PDF: 工程用圖面 | |
