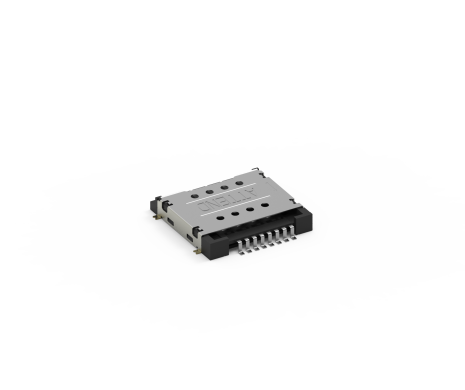

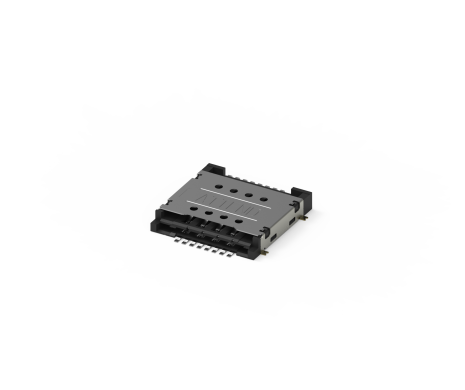

Dual SIM Socket, Push-Pull Type,

115H-BA00

Dual SIM Card Connector, Push-Pull Type, H=3.0 mm,GF

SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of Micro SIM, Mini-SIM, and the Nano-SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.

功能介紹


*
  • 雙 SIM 設計,可在訊號變弱時自動切換電信業者。

  • 出國時能自動切換 SIM 卡,有效降低斷訊機率。

  • 提供穩定不間斷的連線品質,適用於移動或遠端環境。

  • 滑動結構順暢且接觸穩定,確保卡片讀取可靠。

  • 適用於 IoT 閘道器、追蹤器、路由器及需備援網路的設備。

應用領域
*
  • 工業物聯網(IIoT)

  • Wi-Fi 模組

  • 智慧電表

  • LTE 路由器

  • 工控電腦 / POS 系統

  • 車輛追蹤設備

規格介紹

ELECTRICAL
Current Rating0.5A per pin
Voltage Rating100V AC/DC
Contact Resistance50mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability5,000 Cycle
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature260℃ 10sec

下載

類別標題大小文件類型下載
圖面115H-BA00174 KBPDF: 工程用圖面Download
3D115H-BA00656 KBRAR: 3D檔Download
規格書115H-BA00144 KBPDF:規格書Download
