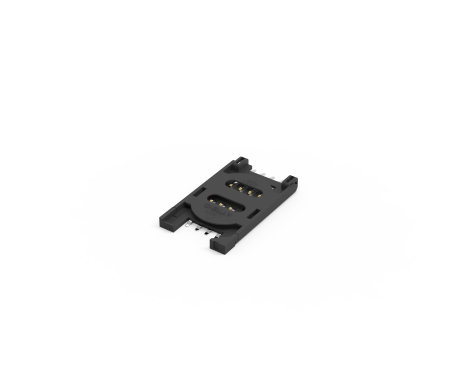

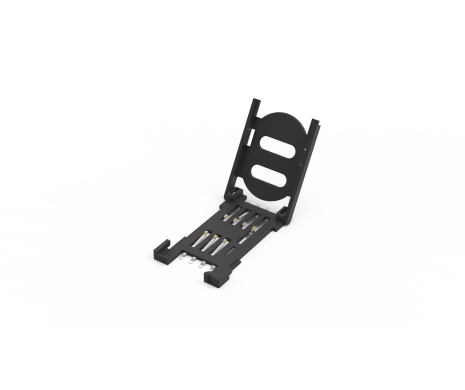

SIM Card Socket Hinge Type 6+2 Pin
115F-AAA2
SIM Card Socket Hinge Type, 6+2 Pin w/Peg, w/switch, GF
SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of Micro SIM, Mini-SIM, and the Nano-SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of Micro SIM, Mini-SIM, and the Nano-SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
Share:
功能介紹
APPLICATION:
- IIOT
- WIFI Module
- Smart Meter
- LTE Router
- IPC / POS
- Vehicle Tracking
規格介紹
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 30V AC/DC |
| Contact Resistance | 100mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 5,000 Cycle |
|---|
| Operating temperature range | -25°C~+85°C |
|---|---|
| Storage temperature range | -25°C~+85°C |
| Recommended IR Reflow(Wave Soldering) Temperature | 260°C |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 115F-AAA2 | 180 KB | PDF: 工程用圖面 |  |
| 3D | 115F-AAA2 | 223 KB | RAR: 3D檔 | |
| 規格書 | 115F-AAA2 | 463 KB | PDF:規格書 | |
