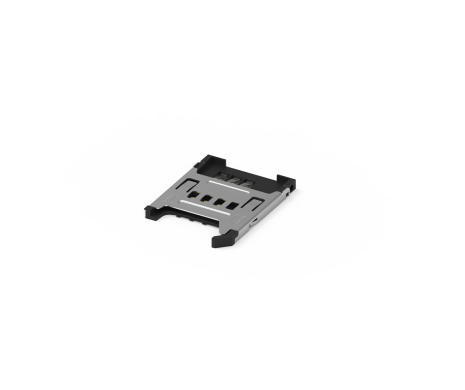

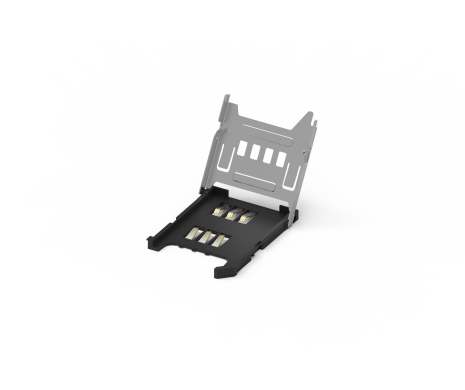

SIM Card Socket, Metal Hinge Type
115G-AAAA-R
SIM Card Connector, Metal Hinge Type, 6 Pin, SMT, GF
SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of Micro SIM, Mini-SIM, and the Nano-SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of Micro SIM, Mini-SIM, and the Nano-SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
Share:
功能介紹
APPLICATION:
- IIOT
- WIFI Module
- Smart Meter
- LTE Router
- IPC / POS
- Vehicle Tracking
規格介紹
| Housing | Hi/ Temp. UL 94V-0, Color: Black |
|---|---|
| Contact | Copper Alloy (T=0.15mm) |
| Cover | Stainless Steel (T=0.2mm) |
| Current Rating | 1.0 AMP. Max. |
|---|---|
| Dielectric Withstanding Voltage | 500V AC R.M.S For One Minute. |
| Insulation Resistance | 1000MΩ Min At 500V DC. |
| Contact Resistance | 30mΩ Max. |
| Operating Temperature | -40 ℃ to +85 ℃ |
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 115G-AAAA-R | 174 KB | PDF: 工程用圖面 |  |
| 3D | 115G-AAAA-R | 225 KB | RAR: 3D檔 | |
| 規格書 | 115G-AAAA-R | 283 KB | PDF:規格書 | |
