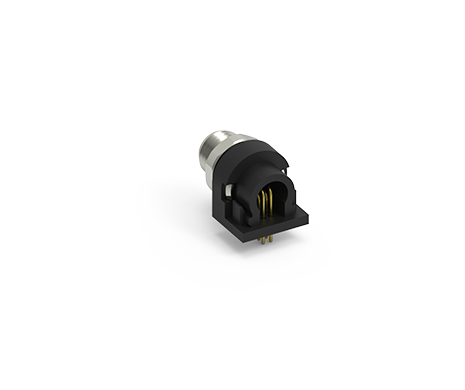

M5 A Code, Female R/A, Front Fastened
220A-XXFRF
M5 A Code Receptacle, Female Pins, Right Angle Type, Front Fastened
M5 circular connector is the most compact type in the M series. The straight and right angle types are available for your design needs. With an IP protection rating of IP67 and screw cap of durable design, this M5 circular connector type becomes the perfect solution for medical devices, automotive sensors, industrial controllers as well as embedded systems exposed to extreme working environments.
M5 circular connector is the most compact type in the M series. The straight and right angle types are available for your design needs. With an IP protection rating of IP67 and screw cap of durable design, this M5 circular connector type becomes the perfect solution for medical devices, automotive sensors, industrial controllers as well as embedded systems exposed to extreme working environments.
Share:
功能介紹
APPLICATION:
- Medical Devices
- Automotive Sensors
- Industrial Controllers
| Part Number | Pin Assignment | Pin Count |
|---|---|---|
| 220A-04FRF |  | 4Pin |
規格介紹
| Current Rating | 1A |
|---|---|
| Voltage Rating | 60V |
| Operating temperature range | -20°C~+85°C |
|---|---|
| Waterproof Level | IP67 |
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 220A-04FRF | 136 KB | PDF: 工程用圖面 |  |
| 3D | 220A-04FRF | 365 KB | RAR: 3D檔 | |
