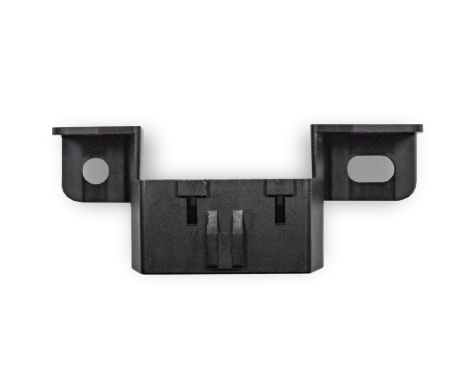

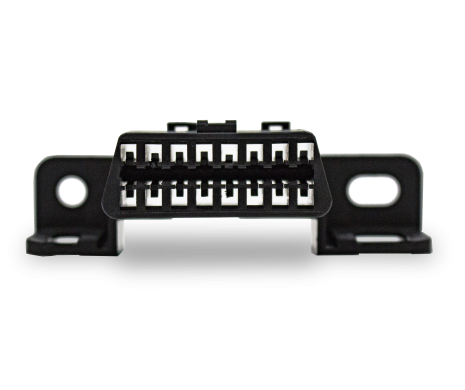

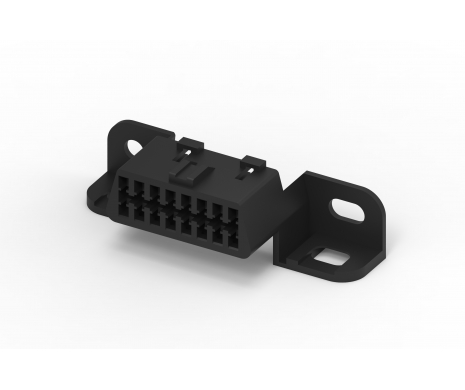

OBDII, Type A/B Female Connector, Housing, Flange Mount
226B-H002
OBDII, Type A/B Female Connector, Housing, Flange Mount
The OBDII port is designed for vehicle scanning which enables the mechanic to read DTCs for the repairment or maintenance. ATTEND’s OBD-II series includes Type-A supporting 12 voltage and Type-B supporting 24 voltage for your option to benefit your design of automotive devices.
The OBDII port is designed for vehicle scanning which enables the mechanic to read DTCs for the repairment or maintenance. ATTEND’s OBD-II series includes Type-A supporting 12 voltage and Type-B supporting 24 voltage for your option to benefit your design of automotive devices.
Share:
規格介紹
| Current Rating | 6A MAX |
|---|---|
| Voltage Rating | 30V DC |
| Contact Resistance | 100MΩ Min |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 1000VAC |
| Durability | 200 Cycle |
|---|---|
| Insertion Force | 142N max. |
| Extraction Force | 88N max |
| Operating temperature range | -40℃~+85℃ |
|---|
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 226B-H002 | 45 KB | PDF: 工程用圖面 |  |
| 圖面 | 226B-A002 | 240 KB | PDF: 工程用圖面 | |
| 圖面 | 226B-T002 | 48 KB | PDF: 工程用圖面 | |
