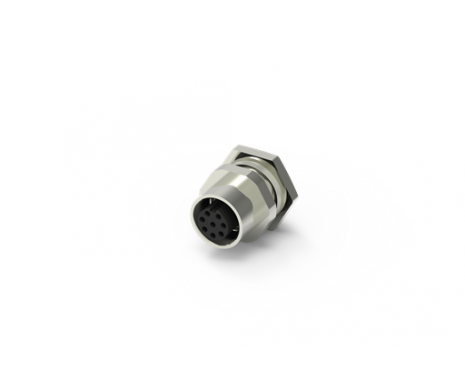

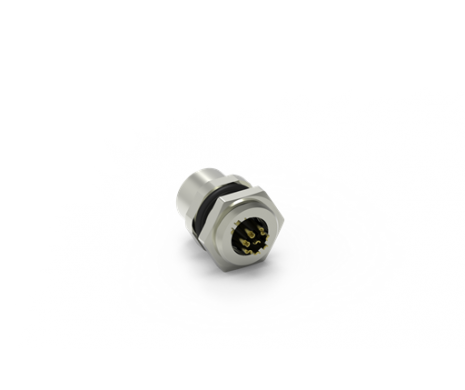

M12 A Code Receptacle, Female Pins, Solder Type, Rear Fastened

216A-XXFAR

M12 A Code Receptacle, Female Pins, Solder Type, Rear Fastened

ATTEND’s M-series circular connectors cover an extensive range which includes M5/8/12/23 connectors that support customers look for solutions based on the industry-proven market standard. Circular connector generally use in industrial automation, Ethernet system, intelligent transportation system, Traffic safety system and outdoor devices for decades.

功能介紹

The most type of all series, it offers support for high power and high frequency. It is considered the best option for high speed signal transmission and power feeding solution for industrial and rugged applications under more demanding environments thanks to its IP67 rating and robustness. In addition, its coding defined under the standards coding helps preventing incorrect mating connection.

Product Specification Comparison Table
Part Number	Pin Assignment	Pin Count
216A-05FAR		5Pin
216A-04FAR		4Pin

Product Specification Comparison Table
Part Number	Pin Assignment	Pin Count
216A-08FAR		8Pin

規格介紹

5 Pin Current Rating	4A
5 Pin Voltage Rating	60V

6~8 Pin Current Rating	2A
6~8 Pin Voltage Rating	30V

ENVIRONMENTAL
Operating temperature range	-40°C~+85°C
Waterproof Level	IP67

下載

類別	標題	大小	文件類型
圖面	216A-05FAR	194 KB	PDF: 工程用圖面
3D	216A-05FAR	411 KB	RAR: 3D檔
圖面	216A-08FAR	76 KB	PDF: 工程用圖面
3D	216A-08FAR	333 KB	RAR: 3D檔
圖面	216A-04FAR	70 KB	PDF: 工程用圖面
3D	216A-04FAR	301 KB	RAR: 3D檔
規格書	Pairing Diagram M12 Series waterproof connector	95 KB	PDF
規格書	216Series Spec	396 KB	PDF:規格書
