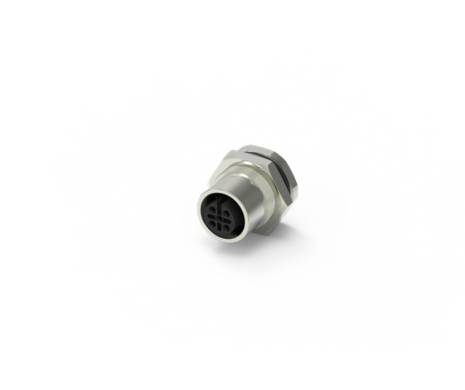

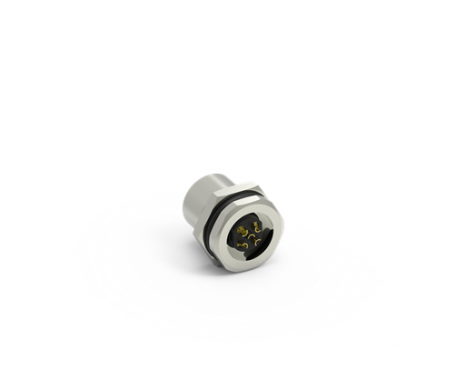

M12 A Code, Female, Solder Type, Front Fastened
216A-XXFAF
M12 A Code Receptacle, Female Pins, Solder Type, Front Fastened

ATTEND’s M-series circular connectors cover an extensive range which includes M5/8/12/23 connectors that support customers look for solutions based on the industry-proven market standard. Circular connector generally use in industrial automation, Ethernet system, intelligent transportation system, Traffic safety system and outdoor devices for decades.
Share:
功能介紹
Panel Mount Ordering Instructions
Underwater Unmanned Vehicle
The most type of all series, it offers support for high power and high frequency. It is considered the best option for high speed signal transmission and power feeding solution for industrial and rugged applications under more demanding environments thanks to its IP67 rating and robustness. In addition, its coding defined under the standards coding helps preventing incorrect mating connection.
Product Specification Comparison Table
Part NumberPin AssignmentPin Count
             216A-03FAF             Pin Assignment 3pin3Pin
216A-04FAFPin Assignment 4pin4Pin
216A-05FAFPin Assignment 5pin5Pin
Product Specification Comparison Table
Part NumberPin AssignmentPin Count
216A-08FAFPin Assignment 8pin8Pin
216A-10FAFPin Assignment 10pin10Pin
216A-12FAFPin Assignment 12pin12Pin

規格介紹
ELECTRICAL
Current Rating5A
Voltage Rating125V
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Waterproof LevelIP67
下載
類別標題大小文件類型下載
圖面216A-05FAF198 KBPDF: 工程用圖面Download
3D216A-05FAF448 KBRAR: 3D檔Download
圖面216A-08FAF73 KBPDF: 工程用圖面Download
3D216A-08FAF328 KBRAR: 3D檔Download
圖面216A-10FAF76 KBPDF: 工程用圖面Download
3D216A-10FAF859 KBRAR: 3D檔Download
圖面216A-03FAF74 KBPDF: 工程用圖面Download
圖面216A-04FAF74 KBPDF: 工程用圖面Download
圖面216A-12FAF71 KBPDF: 工程用圖面Download
規格書216Series Spec396 KBPDF:規格書Download
