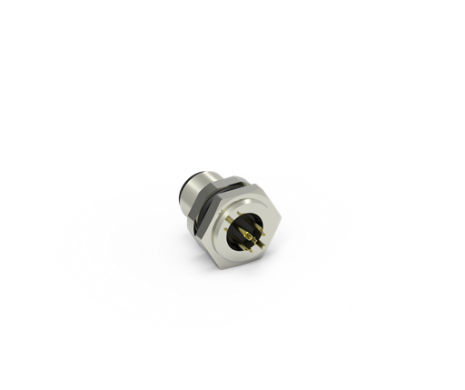

M12 A Code Receptacle, Male Pins, Solder Type, Rear Fastened

216A-XXMAR

M12 A Code Receptacle, Male Pins, Solder Type, Rear Fastened

ATTEND’s M-series circular connectors cover an extensive range which includes M5/8/12/23 connectors that support customers look for solutions based on the industry-proven market standard. Circular connector generally use in industrial automation, Ethernet system, intelligent transportation system, Traffic safety system and outdoor devices for decades.

功能介紹

The most type of all series, it offers support for high power and high frequency. It is considered the best option for high speed signal transmission and power feeding solution for industrial and rugged applications under more demanding environments thanks to its IP67 rating and robustness. In addition, its coding defined under the standards coding helps preventing incorrect mating connection.

Product Specification Comparison Table
Part Number	Pin Assignment	Pin Count
216A-02MAR		2Pin
216A-04MAR		4Pin
216A-05MAR		5Pin

Product Specification Comparison Table
Part Number	Pin Assignment	Pin Count
216A-08MAR		8Pin
216A-12MAR		12Pin

規格介紹

ELECTRICAL
2~4 Pin Current Rating	4A
2~4 Pin Voltage Rating	250V

5 Pin Current Rating	4A
5 Pin Voltage Rating	60V

6~8 Pin Current Rating	2A
6~8 Pin Voltage Rating	30V

9~12 Pin Current Rating	1.5A
9~12 Pin Voltage Rating	30V

ENVIRONMENTAL
Operating temperature range	-40°C~+85°C
Waterproof Level	IP67

下載

類別標題文件類型	標題	大小	文件類型
圖面	216A-08MAR	193 KB	PDF: 工程用圖面
3D	216A-08MAR	307 KB	RAR: 3D檔
圖面	216A-12MAR	82 KB	PDF: 工程用圖面
3D	216A-12MAR	435 KB	RAR: 3D檔
圖面	216A-02MAR	75 KB	PDF: 工程用圖面
3D	216A-02MAR	128 KB	RAR: 3D檔
圖面	216A-05MAR	77 KB	PDF: 工程用圖面
3D	216A-05MAR	141 KB	RAR: 3D檔
圖面	216A-04MAR	78 KB	PDF: 工程用圖面
規格書	216Series Spec	396 KB	PDF:規格書
