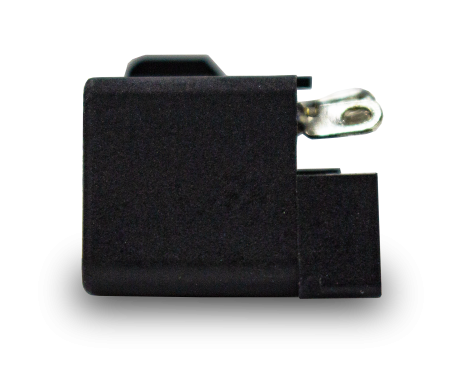

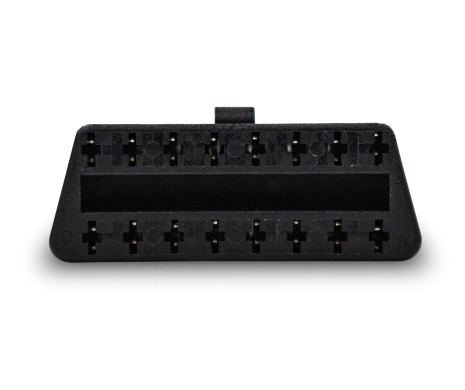

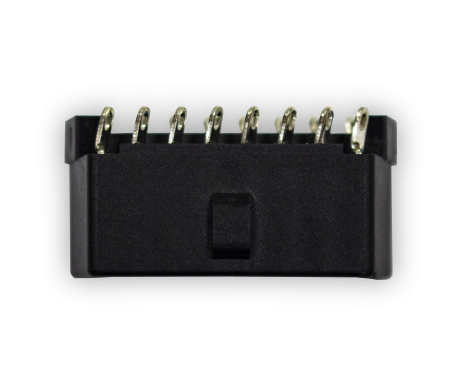

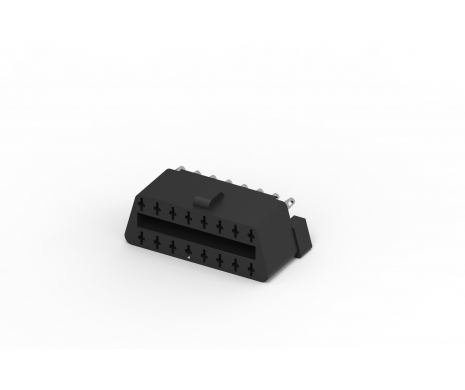

OBDII, Type A/B Female Connector, Solder, Overmold
226B-1201
OBDII, Type A/B Female Connector, 16 Pin, 12V, Solder, Overmold
The OBDII port is designed for vehicle scanners which mechanic could read the DTCs to complete the repair or maintenance. In recent years, there is more advanced device are available for regular users or corporation usage for different purposes. The ATTEND OBD-II Type-A/B female connector support both type A and type B male connector with solder type benefits for your automotive device idea and product designs.
The OBDII port is designed for vehicle scanners which mechanic could read the DTCs to complete the repair or maintenance. In recent years, there is more advanced device are available for regular users or corporation usage for different purposes. The ATTEND OBD-II Type-A/B female connector support both type A and type B male connector with solder type benefits for your automotive device idea and product designs.
Share:
功能介紹
- 堅固外殼設計，確保耐用性與長期使用壽命
- 穩固插拔介面，確保可靠連接與穩定訊號傳輸
- 多樣化配置：Type A、Type B、A/B 母座
- 支援焊接、直角 DIP、包覆成型等組裝方式
- 符合 OBDII 車載診斷介面標準
應用領域
- 車載診斷系統 (OBDII)
- ECU 程式燒錄與功能測試
- 診斷工具與掃描器
- 後裝裝置與車聯網應用
- 車隊管理系統
規格介紹
| Current Rating | 6A MAX |
|---|---|
| Voltage Rating | 30V DC |
| Contact Resistance | 100MΩ Min |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 1000VAC |
| Durability | 200 Cycle |
|---|---|
| Insertion Force | 142N max. |
| Extraction Force | 88N max |
| Operating temperature range | -40℃~+85℃ |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 226B-1201 | 150 KB | PDF: 工程用圖面 |  |
| 3D | 226B-1201 | 494 KB | RAR: 3D檔 | |
