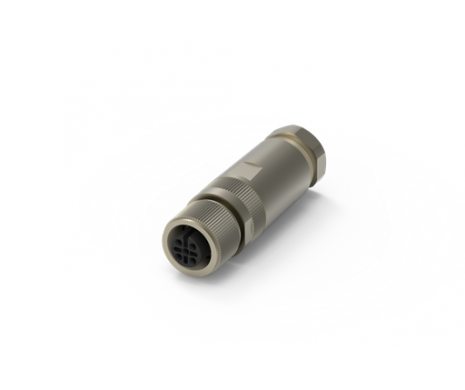

M12 A Code, Plug for Cable, Female Pins, Field Installable
216A-XXFF0
M12 A Code, Plug for Cable, Female Pins, Field Installable
ATTEND’s M-series circular connectors cover an extensive range which includes M5/8/12/23 connectors that support customers look for solutions based on the industry-proven market standard. Circular connector generally use in industrial automation, Ethernet system, intelligent transportation system, Traffic safety system and outdoor devices for decades.
ATTEND’s M-series circular connectors cover an extensive range which includes M5/8/12/23 connectors that support customers look for solutions based on the industry-proven market standard. Circular connector generally use in industrial automation, Ethernet system, intelligent transportation system, Traffic safety system and outdoor devices for decades.
Share:
功能介紹
The most type of all series, it offers support for high power and high frequency. It is considered the best option for high speed signal transmission and power feeding solution for industrial and rugged applications under more demanding environments thanks to its IP67 rating and robustness. In addition, its coding defined under the standards coding helps preventing incorrect mating connection.
Part Number | Pin Assignment | Pin Count |
---|---|---|
216A-04FF0 | 4Pin | |
216A-05FF0 | 5Pin |
Part Number | Pin Assignment | Pin Count |
---|---|---|
216A-08FF0 | 8Pin |
規格介紹
2~4 Pin Current Rating | 4A |
---|---|
2~4 Pin Voltage Rating | 250V |
5 Pin Current Rating | 4A |
---|---|
5 Pin Voltage Rating | 60V |
6~8 Pin Current Rating | 2A |
---|---|
6~8 Pin Voltage Rating | 30V |
9~12 Pin Current Rating | 1.5A |
---|---|
9~12 Pin Voltage Rating | 30V |
Operating temperature range | -40°C~+85°C |
---|---|
Waterproof Level | IP67 |
