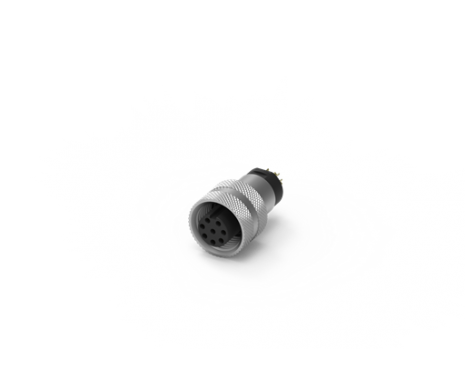

• Connector Solution 216A-XXFO0

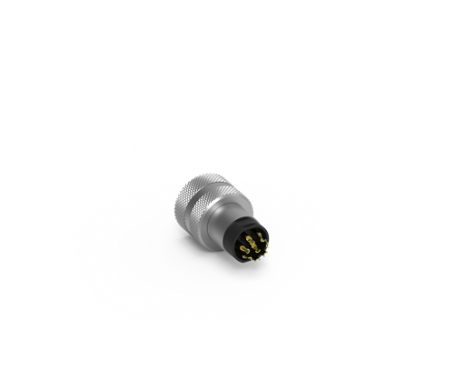

  • Connector Solution 216A-XXFO0
  • Connector Solution 216A-XXFO0
  • Connector Solution 216A-XXFO0
M12 A Code, Plug for Cable, Female Pins, Overmold with cable
216A-XXFO0
M12 A Code, Plug for Cable, Female Pins, Overmold with cable

ATTEND’s M-series circular connectors cover an extensive range which includes M5/8/12/23 connectors that support customers look for solutions based on the industry-proven market standard. Circular connector generally use in industrial automation, Ethernet system, intelligent transportation system, Traffic safety system and outdoor devices for decades.
Share:
功能介紹
Panel Mount Ordering Instructions
Underwater Unmanned Vehicle
The most type of all series, it offers support for high power and high frequency. It is considered the best option for high speed signal transmission and power feeding solution for industrial and rugged applications under more demanding environments thanks to its IP67 rating and robustness. In addition, its coding defined under the standards coding helps preventing incorrect mating connection.
Product Specification Comparison Table
Part NumberPin AssignmentPin Count
             216A-02FO0             Pin Assignment2Pin
216A-03FO0Pin Assignment3Pin
216A-04FO0Pin Assignment4Pin
216A-05FO0Pin Assignment5Pin
Product Specification Comparison Table
Part NumberPin AssignmentPin Count
216A-08FO0Pin Assignment8Pin
216A-10FO0Pin Assignment10Pin
216A-12FO0Pin Assignment12Pin

*
The most type of all series, it offers support for high power and high frequency. It is considered the best option for high speed signal transmission and power feeding solution for industrial and rugged applications under more demanding environments thanks to its IP67 rating and robustness. In addition, its coding defined under the standards coding helps preventing incorrect mating connection.
Product Specification Comparison Table
Part NumberPin AssignmentPin Count
             216A-02FO0             2Pin
216A-03FO03Pin
216A-04FO04Pin
216A-05FO05Pin
Product Specification Comparison Table
Part NumberPin AssignmentPin Count
216A-08FO08Pin
216A-10FO010Pin
216A-12FO012Pin

規格介紹
ELECTRICAL
2~4 Pin Current Rating4A
2~4 Pin Voltage Rating250V
5 Pin Current Rating4A
5 Pin Voltage Rating60V
6~8 Pin Current Rating2A
6~8 Pin Voltage Rating30V
9~12 Pin Current Rating1.5A
9~12 Pin Voltage Rating30V
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Waterproof LevelIP67
下載
類別標題大小文件類型下載
圖面216A-02FO073 KBPDF: 工程用圖面Download
圖面216A-05FO0180 KBPDF: 工程用圖面Download
圖面216A-10FO071 KBPDF: 工程用圖面Download
圖面216A-12FO0110 KBPDF: 工程用圖面Download
3D216A-12FO04587 KBRAR: 3D檔Download
圖面216A-08FO072 KBPDF: 工程用圖面Download
3D216A-10FO05346 KBRAR: 3D FileDownload
3D216A-08FO05288 KBRAR: 3D FileDownload
3D216A-05FO05856 KBRAR: 3D FileDownload
3D216A-02FO05733 KBRAR: 3D FileDownload
圖面216A-03FO0123 KBPDF: 工程用圖面Download
圖面216A-04FO071 KBPDF: 工程用圖面Download
3D216A-04FO05798 KBRAR: 3D檔Download
規格書216Series Spec396 KBPDF:規格書Download
