Mini PCIExpress, H=8.0mm
119A-80A00-R02

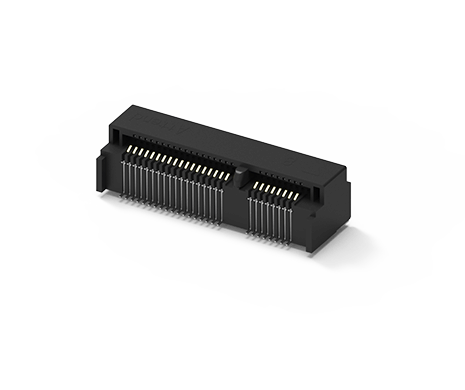

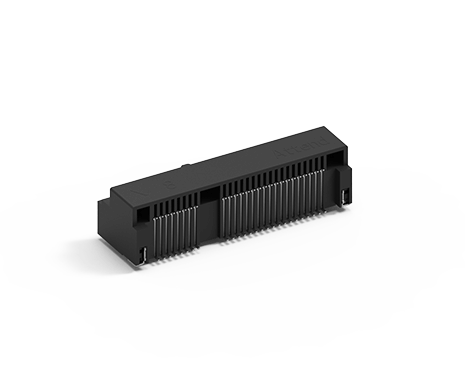

Mini PCIExpress, H=8.0mm, Top Mount, SMT Type
● ATTEND’s Mini PCIe card connectors can support Storage SSD and WiFi, Bluetooth, global navigation satellite systems, near field communication, 4G , LTE, 5G. PCI-SIG standard compliant.
● 0.8mm pitch and a 52-pin configuration with varying heights.
● One or Dual latch for tool free install module quick and easy.
● ATTEND’s Mini PCIe card connectors can support Storage SSD and WiFi, Bluetooth, global navigation satellite systems, near field communication, 4G , LTE, 5G. PCI-SIG standard compliant.
● 0.8mm pitch and a 52-pin configuration with varying heights.
● One or Dual latch for tool free install module quick and easy.
Share:
配件
功能介紹
Multiple mounting options
To maximize with customer requested, ATTEND offering multiple mounting options, with single latch, dual latch, and screw & nuts to fit with different design purposes.
To maximize with customer requested, ATTEND offering multiple mounting options, with single latch, dual latch, and screw & nuts to fit with different design purposes.
Multiple height options
ATTEND offers multiple height options, from 4.0 mm to 9.9 mm standoff which provides a flexible design solution.
ATTEND offers multiple height options, from 4.0 mm to 9.9 mm standoff which provides a flexible design solution.
Application
The Mini PCIe connector is widely applied in different industries, commonly used in wireless networking /Wifi device, ADSL modern, SSD storage, IP set-top box.
The Mini PCIe connector is widely applied in different industries, commonly used in wireless networking /Wifi device, ADSL modern, SSD storage, IP set-top box.
規格介紹
Plastic Body | LCP, Color Black |
---|---|
Contact | Phosphor Bronze Alloy (C5191R-H) Contacts Rating |
Contacts Rating | Contact Area: Gold Plated |
Solder Area | Tin |
Hold Down | Brass (C2680R-H) |
Hold Down Plating | Tin |
Current Rating | 0.5A Max. /1pin |
---|---|
Voltage Rating | 50V AC |
Contact Resistance | 30mΩ Max. |
Insulation Resistance | 500MΩ Min. |
Contact Normal Force | 50gf per pin Min. |
---|---|
Durability | 100 mating and unmating cycles |
Operating temperature range | -40℃~+90℃ |
---|---|
Storage temperature range | -40℃~+90℃ |
Solder Ability | 260±5℃ |
