Mini PCIExpress, H=4.0mm
119A-40A00-R02

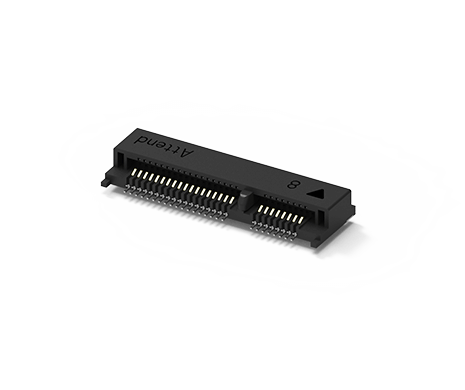

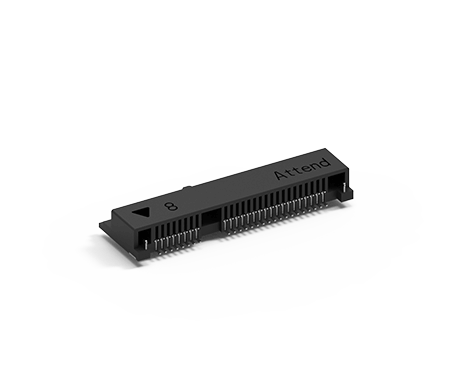

Mini PCIExpress, H=4.0mm, Top Mount, SMT Type

● ATTEND’s Mini PCIe card connectors can support Storage SSD and WiFi, Bluetooth, global navigation satellite systems, near field communication, 4G , LTE, 5G. PCI-SIG standard compliant.
● 0.8mm pitch and a 52-pin configuration with varying heights.
● One or Dual latch for tool free install module quick and easy.
Share:
配件
功能介紹
*
Multiple mounting options

To maximize with customer requested, ATTEND offering multiple mounting options, with single latch, dual latch, and screw & nuts to fit with different design purposes.
*
Application

The Mini PCIe connector is widely applied in different industries, commonly used in wireless networking /Wifi device, ADSL modern, SSD storage, IP set-top box.
規格介紹
ELECTRICAL
Current Rating 0.5A per pin
Voltage Rating50V DC
Contact Resistance55mΩ max.
Insulation Resistance500MΩ min.
Dielectric Withstanding Voltage300VAC
MECHANICAL
Durability100Cycle
Insertion Force2.3Kgf max.
Extraction Force2.3Kgf max.
ENVIRONMENTAL
Operating temperature range -40℃~+85℃
Storage temperature range -40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature260℃ 10Sec
