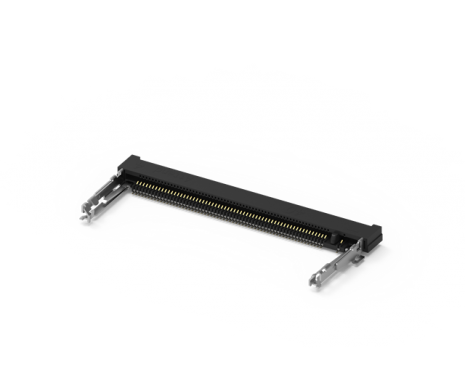

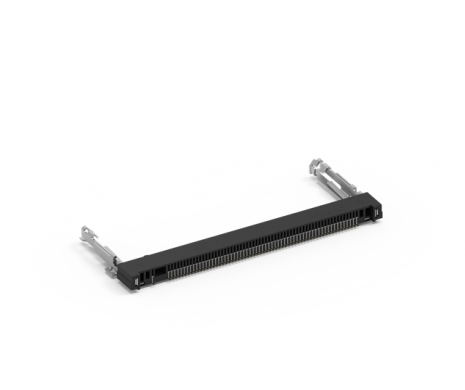

Mini PCI Connector, H=4.0mm
114B-40B00-R02
Mini PCI Connector, H=4.0mm, Top Mount, SMT Type
The Mini PCI was originally designed for space-saving solutions for the laptop since the standard size for Mini PCI cards is approximately a quarter of their full-sized counterparts. Its development allows all the portable devices to have the possibility of shrinking and lightweight. Today, since the mini PCI featuring stability and affordable, it still used in the industrial embedded system for data transmission.
The Mini PCI was originally designed for space-saving solutions for the laptop since the standard size for Mini PCI cards is approximately a quarter of their full-sized counterparts. Its development allows all the portable devices to have the possibility of shrinking and lightweight. Today, since the mini PCI featuring stability and affordable, it still used in the industrial embedded system for data transmission.
Share:
規格介紹
| Current Rating | 0.3A Max. per pin |
|---|---|
| Voltage Rating | 25V AC |
| Contact Resistance | 30MΩ Max. |
| Insulation Resistance | 500MΩ Max. |
| Dielectric Withstanding Voltage | Matte Connector: apply 250V AC at 60Hz (rms.) |
| Contact Normal Force | 50 gf per pin Min. |
|---|
| Operating temperature range | -40°C~+90°C |
|---|---|
| Storage temperature range | - 40°C~+90°C |
| Recommended IR Reflow Temperature | 260°C |
|---|
