M12 Connector

*

Understanding M12 Electrical Connectors



An M12 connector is a type of electrical connector commonly used in industrial settings for connecting sensors, actuators, and other devices. It's known for its high-speed signal transmission and power-feeding.

ATTEND provides both m12 socket (female connector) and m12 plug (male connector) formats with various coding styles and standard compliances, such as the IEC61076-2-109 with X coding and ISO 11801 for Ethernet.

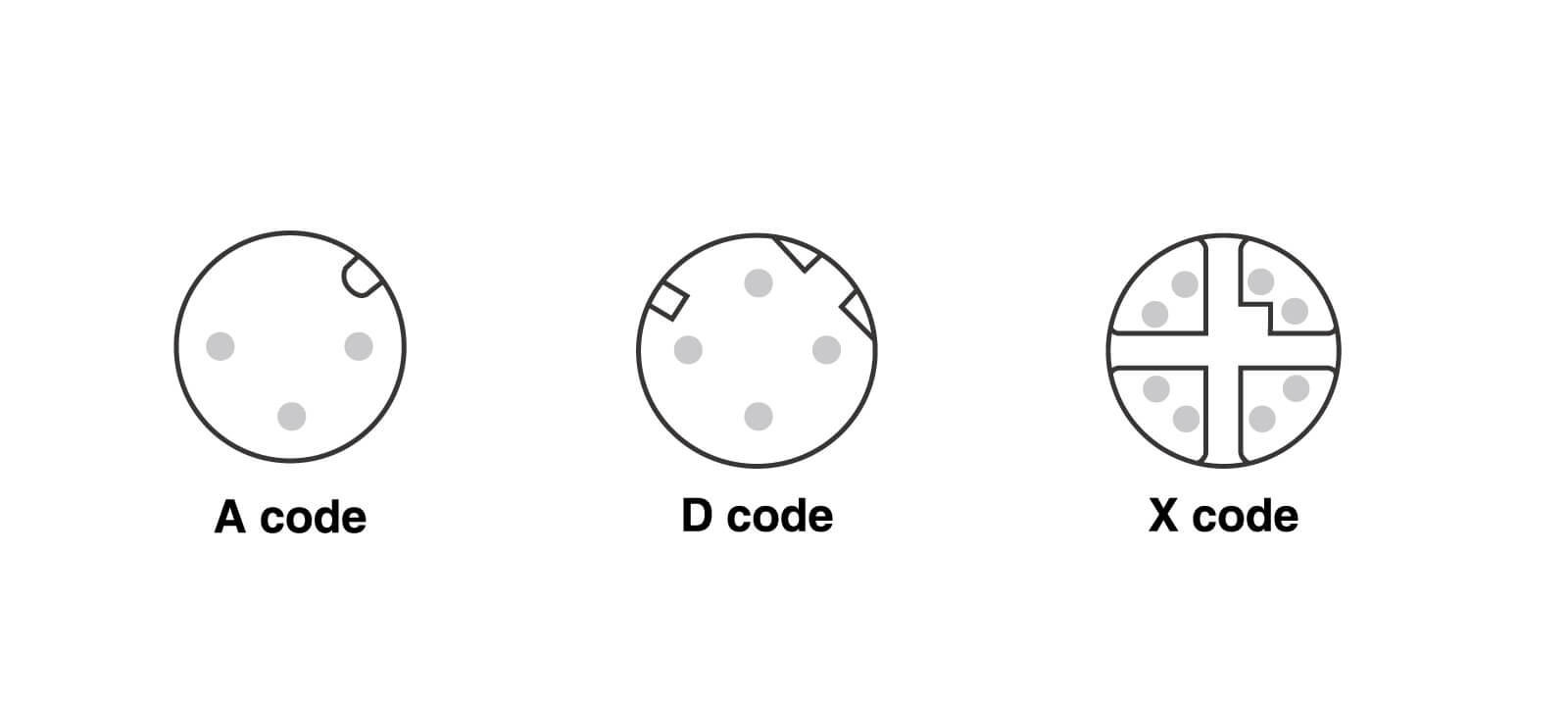

M12-Coding

M12’s Various Coding and Pin Assignment

At ATTEND, we offer different coding configurations for our m12 sockets and m12 plugs, which are also available with 2-pin to 12-pin assignments for diverse industrial and electronic applications:
  • A-coded connectors are typically used for sensors and power.
  • D-coded connectors are for Ethernet.
  • X-coded connectors are for high-speed data transmission.
IP67-CONNECTOR

If you are unsure about which configurations to choose for your m12 sockets or m12 plugs, you may reach out to our experts for inquiries. We will help you find the best solutions for your specific application.

Harsh Environment Tolerance

  • Waterproof Level IP67:

Guarantees protection against dust and temporary immersion in water, ideal for outdoor telecommunications and marine electronics.

  • Operating Temperature -40°C to +85°C:

Ensures functionality in extreme cold or heat, suitable for demanding climates, such as marine electronic and automotive systems.

m12-connector-plug-socket

Electrical Stability

  • Current Rating Range:

0.5A ~ 20A

  • Voltage Rating Range:

50V ~ 250V

Current and voltage ratings specify the maximum electrical load a connector can safely handle without compromising performance. An optimal power rating also reduces contact resistance to enable efficient current flow, lowering the risk of breakdowns or overheating in demanding applications.

With a wide current and voltage rating range, ATTEND’s M12 circular connectors can accommodate various applications, from low-power sensors to high-current power distribution.

Circular-Connector--Panel-Mount-Installation

Screw Locking Mechanism

The M12 electrical connectors from ATTEND incorporate a screw-locking mechanism to deliver a reliable connection. The mated components will tighten and create a secure bond as users rotate the connector's threaded coupling. This ensures the connector remains firmly attached, even under vibration, shock, or mechanical stress, so you won’t have to worry about accidental disconnections.

M12 Connection Options

At ATTEND, we offer diverse solutions so that you can seamlessly integrate the M12 circular connectors into your existing infrastructure while maintaining installation efficiency. Available options include:

  • M12 Overmolded Cable Connectors: These M12 connectors come with pre-assembled cables so they can be used straight away. They also have a sealed layer around the cables, providing protection against moisture, dust, vibration, and fluctuating temperatures in harsh environments.

  • M12 Field-Installable Connectors: Designed for on-site customization, these connectors can be soldered or crimped with simple tools, offering flexibility for cable length and other features. Still, users must select the right cable size and diameters to ensure compatibility with the M12 connector’s specifications.

  • M12 Bulkhead Connectors: Also known as panel mount connectors, they can be directly mounted on the front or rear of a bulkhead using threads, allowing for quick and flexible installation. They can also be soldered onto the components for a more robust connection.

  • M12 PCB Connectors: These connectors are specifically designed for mounting on printed circuit boards (PCBs) with soldering or through-hole methods. This eliminates the need for additional mounting hardware, streamlining the installation process while allowing for a more compact design.

  • M12 SMD Connectors: These Surface Mount Device (SMD) connectors are tailored for automated assembly processes using SMT equipment, such as solder paste printers, pick-and-place machines, and reflow ovens. This equipment will apply solder paste directly to the PCB pad before placing the M12 connectors in the designated area. The reflow oven will then heat the solder to secure the bond. This option reduces labor costs while ensuring precise and efficient mounting on PCBs

How to Assemble Our Field-Installable M12 Connectors

While our field-installed M12 electrical connectors offer flexibility, the assembly requires precision to ensure connection reliability. Here is a quick guide to help you understand the process:

  1. Prepare the Cable: Slide the connector components — including the coupling nut, grommet, gripper, etc — over the cable.
  2. Strip the Cable: Trim back the cable jacket by approximately 30 mm to expose the shielding. Then, carefully fold the shielding back over the jacket and secure it with electrical tape.
  3. Strip the Insulation: Remove any foil or plastic covering the conductors and strip back the insulation of each wire by about 5 mm.
  4. Connect the Wires: Attach the individual wires to the designated pins on the connector hub before soldering them in place. Most wires follow a number-coded or color-coded system, so you can match the wire placement accordingly to ensure correct alignment.
  5. Fit the Components Together: Slide the connector hub into the housing and make sure the shielding is evenly distributed around the circumference. Trim excess shielding if necessary and fasten the pressing screw until it is hand-tight.
  6. Secure the Connector: Screw on the coupling nut firmly to complete the installation. Inspect to ensure no stray shield wires fall back into the connector to prevent connection interference.

Soldering Termination for M12 Circular Connectors

At ATTEND, we mainly recommend soldering termination for our M12 circular connectors, as this method provides superior mechanical stability and reliable electrical conductivity.

Soldering termination is also particularly beneficial when working with smaller cables or densely packed connectors that are not suitable for crimping. The solder forms a secure bond between components, preventing shorts while ensuring a durable connection that resists vibration, mechanical stress, and temperature fluctuations.

To do this, align the corresponding solder cup onto each conductor. Then, apply heated solder paste to secure the wire in place. We suggest working from the inside out so that each joint can be soldered cleanly without interference.

Why ATTEND M12 Connectors?

Reduce downtime in harsh conditions
Reduce downtime in harsh conditions.
 Lower installation and tooling costs
Lower installation and tooling costs.
Supports up to 10 Gb/s bandwidth
Supports up to 10 Gb/s bandwidth.
Meets IEC 61076-2 standards
Meets IEC 61076-2 standards for harsh environments, ensuring reliable performance and extended product life.
Customized and general market cable assemblies
Customized and general market cable assemblies.
Customized and general market cable assemblies
Extend equipment life with M12 circular connectors.

Success Stories

(圖)

Aerial Evolution: Autonomous Systems in Multirotor Drones

ATTEND connectors are a key component in the latest generation of advanced multirotor drones. These drones with autonomous flight systems demand compact and versatile connectors that can withstand challenging environments. ATTEND delivers a tailored solution: the M8 Series for RTK GNSS integration, 206A Series for high-definition camera connections, and others. This synergy empowers highly efficient, data-rich drones to propel the boundaries of aerial technology.



(圖)

Maximizing Robotics: ATTEND M-Series Circular Connectors

Robotic applications require durable, space-conscious connectors. ATTEND's M-series circular connectors address the challenges faced by compact, general-purpose, and high-performance robots. These solutions boost efficiency, lower maintenance costs, and conquer limitations in space and power demands. ATTEND's adaptable connectors are reliable assets for the evolving robotics industry.


(圖)

Jaime Coreano | VP of Sales, North America

With more than 20 years of experience in the semiconductor and electronic components industry, Jaime Coreano is a trusted professional in the field of connectors, pogo pins, power supplies, LEDs, memory products, and more. His extensive knowledge of market trends and technical expertise has enabled him to support clients across diverse industries, including networking, industrial machinery, medical devices, computing, and military aviation.

Whether you have questions about M12 connectors or need guidance on selecting the right components for your application, Jaime is here to provide tailored solutions and expert advice to meet your unique needs.

Scroll down to find the ideal connector in ATTEND.

Our versatility and commitment to quality ensure you get the best in class. Feel free to Contact Us to discover how M12 connectors from ATTEND can revolutionize your setups!





產品類別

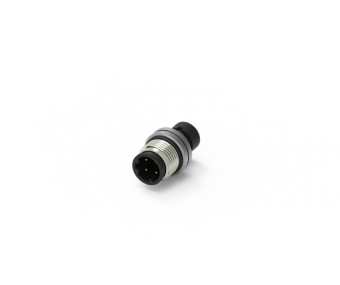

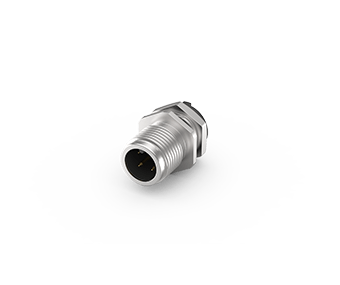

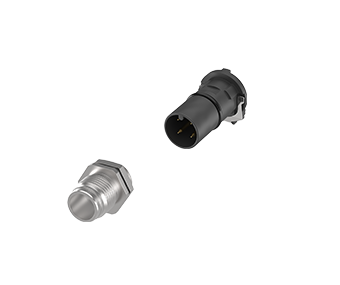

NEW Connector Solution 216D-04MSF 216D-04MSF

M12 D Code Receptacle, Male, 4 Pin, DIP Mount

INQURY

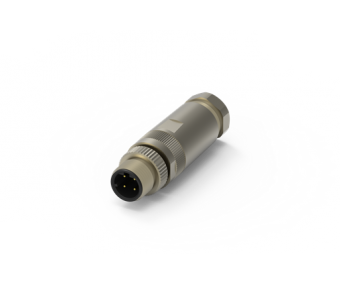

Connector Solution 216A-XXMF1 216A-XXMF1

M12 A-Code, Male For Field Installable, Plastic

INQURY
Connector Solution 216A-XXFF1 216A-XXFF1

M12 A-Code, Female For Field Installable, Plastic

INQURY
Connector Solution 216A-XXFAR 216A-XXFAR

M12 A Code Receptacle, Female Pins, Solder Type, Rear Fastened

INQURY

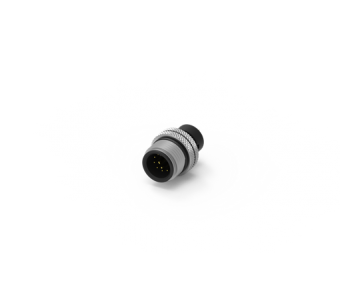

Connector Solution 216A-XXMSF 216A-XXMSF

M12 A Code, Male, Straight, Front Fastened

INQURY

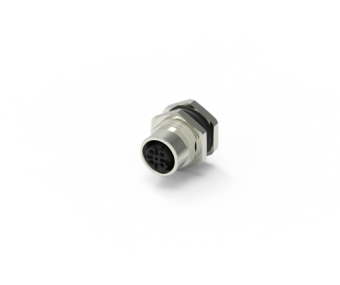

Connector Solution 216A-XXFAF 216A-XXFAF

M12 A Code, Female, Solder Type, Front Fastened

INQURY

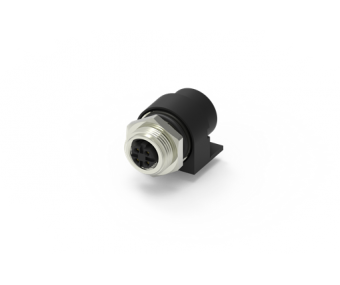

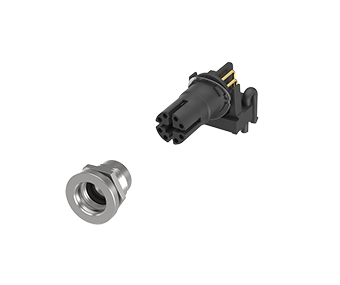

Connector Solution 216A-XXFRF 216A-XXFRF

M12 A Code Receptacle, Female Pins, R/A, Front Fastened

INQURY

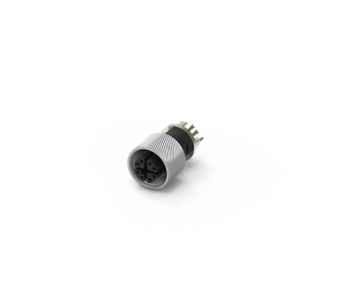

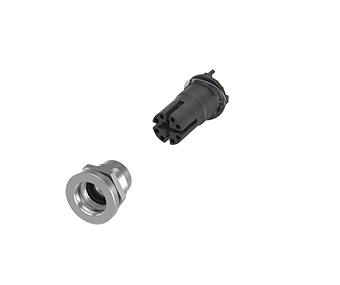

Connector Solution 216A-XXFSF 216A-XXFSF

M12 A Code, Female, Straight, Front Fastened

INQURY

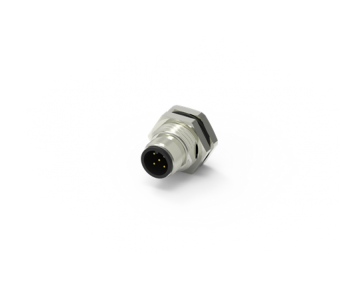

Connector Solution 216A-XXMAF 216A-XXMAF

M12 A Code, Male, Solder Type, Front Fastened

INQURY
Connector Solution 216A-XXMAR 216A-XXMAR

M12 A Code Receptacle, Male Pins, Solder Type, Rear Fastened

INQURY
Connector Solution 216A-XXMRF 216A-XXMRF

M12 A Code, Male, R/A, Front Fastened

INQURY

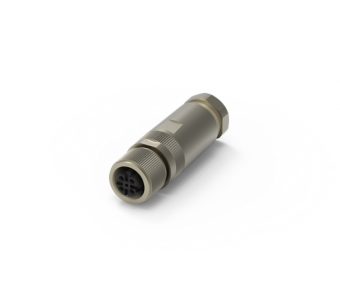

Connector Solution 216A-XXFF0 216A-XXFF0

M12 A Code, Plug for Cable, Female Pins, Field Installable

INQURY
Connector Solution 216A-XXMF0 216A-XXMF0

M12 A Code, Plug, Male, Field Installable

INQURY
Connector Solution 216A-XXMO0 216A-XXMO0

M12 A Code, Plug, Male, Overmold with cable

INQURY
Connector Solution 216A-XXFO0 216A-XXFO0

M12 A Code, Plug for Cable, Female Pins, Overmold with cable

INQURY

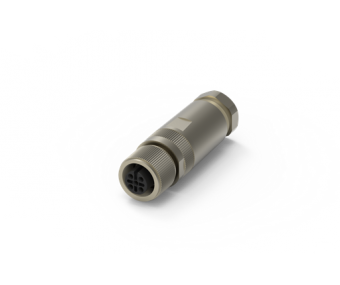

Connector Solution 216D-04FF0 216D-04FF0

M12 D Code, Plug, Female, Field Installable

INQURY

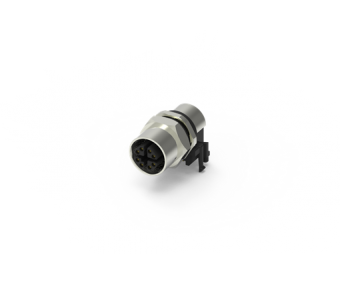

Connector Solution 216D-04FRF 216D-04FRF

M12 D Code, Female Pins, R/A, Front Fastened

INQURY

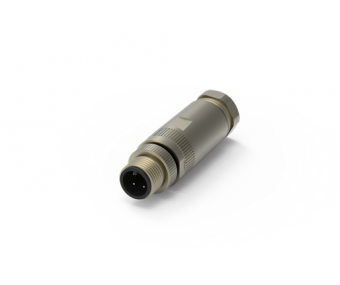

Connector Solution 216D-04MF0 216D-04MF0

M12 D Code, Plug, Male, Field Installable

INQURY
Connector Solution 216D-04MO0 216D-04MO0

M12 D Code, Plug, Male, Overmold with cable

INQURY

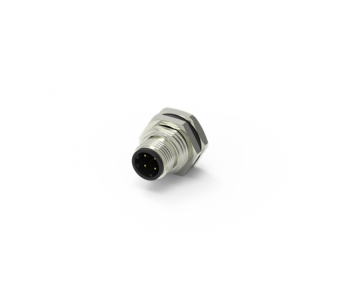

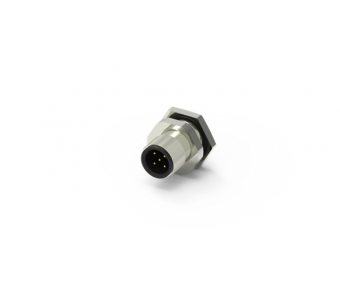

Connector Solution 216D-04MAF 216D-04MAF

M12 D Code, Male, Solder Type, Front Fastened

INQURY

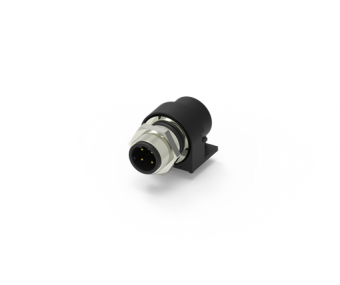

Connector Solution 216D-04MRF 216D-04MRF

M12 D Code, Male Pins, R/A, Front Fastened

INQURY

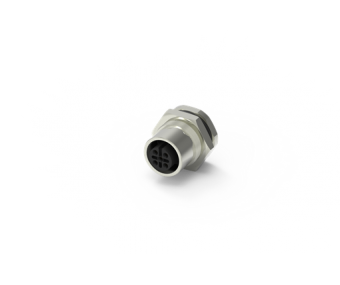

Connector Solution 216D-04FAF 216D-04FAF

M12 D Code, Solder Type, Front Fastened

INQURY

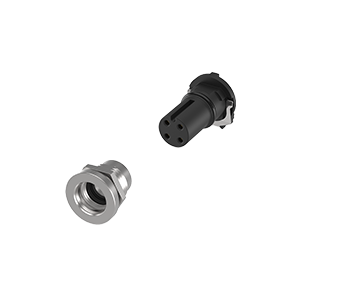

Connector Solution 216D-04FSF 216D-04FSF

M12 D Code, Female Pins, Front Fastened

INQURY

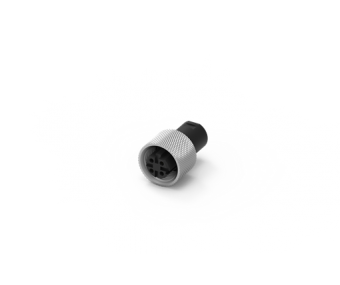

Connector Solution 216D-04FO0 216D-04FO0

M12 D Code, Plug, Female, Overmold with cable

INQURY

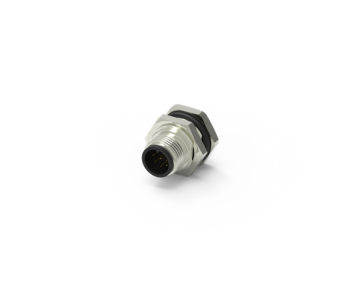

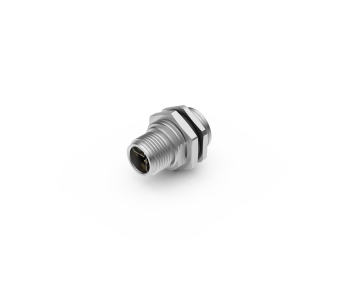

Connector Solution 216X-08MAF 216X-08MAF

M12 X- Code, Male, Solder Type Front Fastened

INQURY

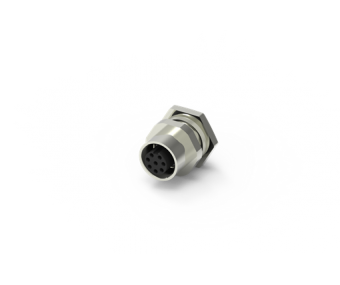

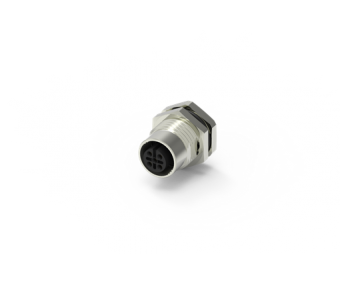

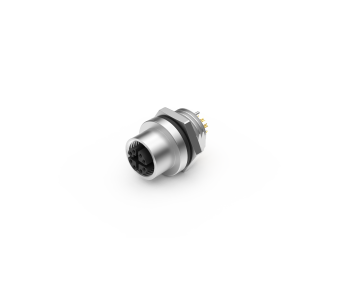

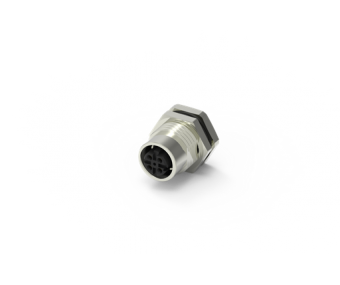

Connector Solution 216X-08FAR 216X-08FAR

M12 X- Code, Female, Solder Type, Rear Fastened

INQURY
Connector Solution 216X-08FO0 216X-08FO0

M12 X Code, Plug, Female, Overmold with cable

INQURY

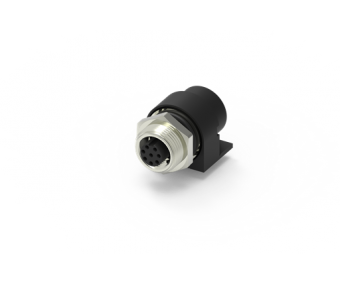

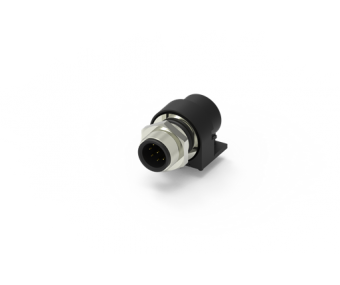

Connector Solution 216X-08FRF 216X-08FRF

M12 X Code, Female R/A, Front Fastened

INQURY
