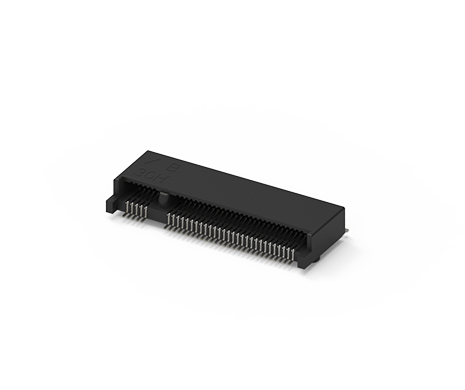

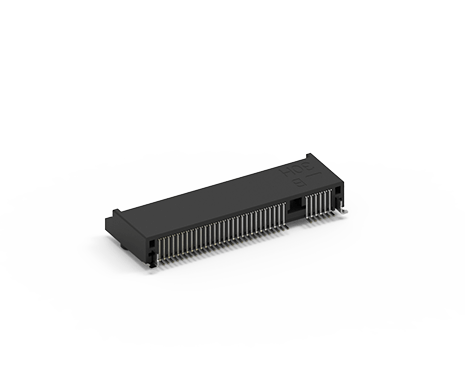

M.2 Connector B Key, H=3.0mm
123A-30B00
M.2 Connector, B Key, H=3.0mm, GF

ATTEND's M.2 next generation form factor (NGFF) connector is designed for ultra-thin products, offering significant PCB space savings over mini PCIe® connectors. This compact connector enables high-speed data transmission with PCI Express 3.0, SATA 3.0, and USB 3.0 compatibility while meeting PCI-SIG PCIe M.2 specifications. The easy-to-use one-action latch feature minimizes time and cost. The M.2 NGFF series, an evolution from mini and half-mini cards, is optimal for slender platforms, accommodating Wi-Fi, Bluetooth®, wireless WAN, and SSD devices while boosting PCIe Gen 3, SATA 3, SATA I/O, and USB 3.0 performance.
MAIN FEATURES
  • Height range: 2.1 mm to 8.5 mm
  • A, B, E, and M keying options for module cards

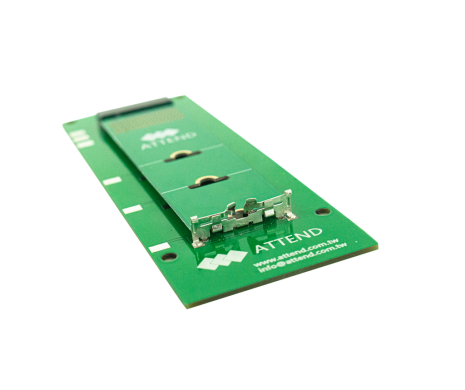

  • One-action latch for time and cost savings
  • PCI-SIG PCIe M.2 specification compliant
  • 0.5 mm pitch featuring sixty-seven contact points
M.2 Connector are two key dimension need to check.
There are two key dimension need to check.
Dim. A
The heights are between min- 2.1mm to max- 8.5mm.
Dim. B
For double-sided modules, this height is also important to keep in mind.
Quick click
Quick click
Industrial PCs
APPLICATION:
  • Data storage
  • Servers
  • Industrial PCs
  • IoT
M.2 Connector list
SPECIFICATION
ELECTRICAL
Current Rating0.5A per pin
Voltage Rating50VAC
Contact Resistance50mΩ Max
Insulation Resistance500MΩ Min
Dielectric Withstanding Voltage300VAC
MECHANICAL
Durability60 Cycle
Insertion Force20N max.
Extraction Force25N max.
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow(Wave Soldering) Temperature260℃
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing123A-30B00351 KBPDF: DrawingDownload
3D123A-30B001759 KBRAR: 3D FileDownload
Drawing123A-NUT-3282 KBPDF: DrawingDownload
3D123A-NUT-3252 KBRAR: 3D FileDownload
Drawing123A-SCREW78 KBPDF: DrawingDownload
Drawing123A-XXL1159 KBPDF: DrawingDownload
3D123A-30L192 KBRAR: 3D FileDownload
Datasheet123A-XXX00 Spec349 KBPDF:SpecDownload
