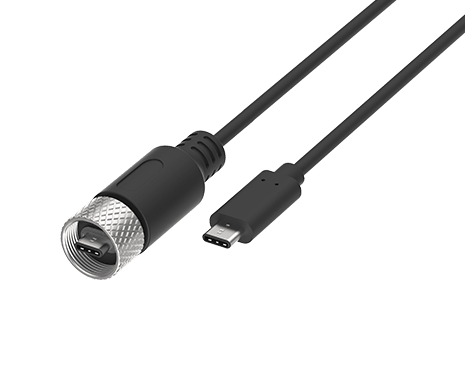

IP68,USB 3.2 Gen 2 Type-C Cable, Screw-Lock

US-CPCP-10005

USB 3.2 Gen 2 Type C Thread-Lock to Type-C Cable, Male, IP68, L=100 cm

ATTEND’s waterproof circular USB Type-C connectors and cable assemblies are compliant with USB 3.2 Gen 2, supporting data rates up to 10 Gbps. Featuring IP68-rated protection, secure thread -lock or quick-lock mechanisms, versatile DIP/FPC terminations options, and an extended operating temperature range of −40°C to +85°C, this series provides reliable connectivity for critical automation, transportation, and field applications.
Share:

MAIN FEATURES

Sealed USB C Conn.
Waterproof USB C Connector and Cable

  • Compliant with USB 3.2 Gen 2, supporting data rates up to 10 Gbps

  • IP68-rated protection against dust and water ingress

  • Offers thread-Lock and quick-locking options.

  • Available with right-angle DIP or FPC cable connection

  • Current rating: 3 A max. for VBUS/GND pins and 1 A max. for other pins

  • High durability with up to 3,500 mating cycles

  • Wide operating temperature range: −20°C to +80°C

APPLICATIONS

Applications

  • Industrial Automation Equipment

  • Robotics and AGV/AMR Systems

  • Transportation Equipment

  • Heavy-Duty Equipment

  • Outdoor Vision and Surveillance Systems

SPECIFICATION

ELECTRICAL
Rated Current (VBUS, GND)3 A Max.
Applicable StandardsUSB 3.2 Gen 2
Applicable StandardsUSB Type-C
Max Data Transfer Rate10 Gbps
Rated Voltage20 VDC
Dielectric Withstanding VoltageAC-100V / 1 sec Min
Insulation Resistance10 MΩ
MECHANICAL
Length100 cm
ConnectorUSB Type-C Male, USB Type-C Male
Side A AngleStraight
Side B AngleStraight
Materials / Colors
(hood, bushing, and cable jacket)		PVC / Black
Number of Positions (plug)24 positions
Durability3,500 cycles
Cable FeaturesThread-Lock
ENVIRONMENTAL
Operating Temperature Range-20°C to +80°C

DOWNLOAD

CATEGORYTITLESIZEFILE TYPEDOWNLOAD
DrawingUS-CPCP-10005218 KBPDF: DrawingDownload
