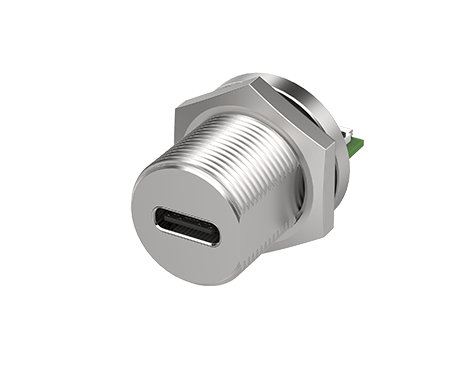

• Connector Solutions 222A-04006

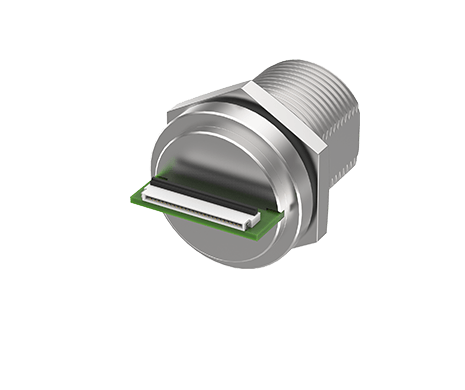

  • Connector Solutions 222A-04006
  • Connector Solutions 222A-04006
  • Connector Solutions 222A-04006

IP68,USB 3.2 Gen 2 Type-C, Thread-lock, FPC Type

222A-04006

USB 3.2 Gen 2 Type-C Receptacle, Thread-Lock, Panel Mount to FPC, IP68

ATTEND’s waterproof circular USB Type-C connectors and cable assemblies are compliant with USB 3.2 Gen 2, supporting data rates up to 10 Gbps. Featuring IP68-rated protection, secure thread -lock or quick-lock mechanisms, versatile DIP/FPC terminations options, and an extended operating temperature range of −40°C to +85°C, this series provides reliable connectivity for critical automation, transportation, and field applications.
Share:
Mating Parts and Available Accessories

MAIN FEATURES

Sealed USB C Conn.
Waterproof USB C Connector and Cable

  • Compliant with USB 3.2 Gen 2, supporting data rates up to 10 Gbps

  • IP68-rated protection against dust and water ingress

  • Offers thread-Lock and quick-locking options.

  • Available with right-angle DIP or FPC cable connection

  • Current rating: 3 A max. for VBUS/GND pins and 1 A max. for other pins

  • High durability with up to 3,500 mating cycles

  • Wide operating temperature range: −40°C to +85°C

APPLICATIONS

Applications

  • Industrial Automation Equipment

  • Robotics and AGV/AMR Systems

  • Transportation Equipment

  • Heavy-Duty Equipment

  • Outdoor Vision and Surveillance Systems

SPECIFICATION

ELECTRICAL
Current Rating3A Max. for Vbus and GND, 1A for other.
Voltage Rating20VDC
Insulation Resistance10MΩ
Dielectric Withstanding Voltage100VAC
MECHANICAL
Durability3,500 Cycle
Mating Force5 to 20N
Un-mating Force6 to 20N
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Storage temperature range-40°C~+85°C
Waterproof LevelIP68

DOWNLOAD

CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing222A-04006166 KBPDF: DrawingDownload
DrawingFPC-0524-15001148 KBPDF: DrawingDownload
