222A-04003

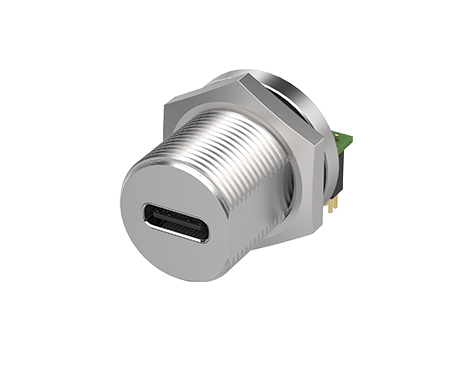

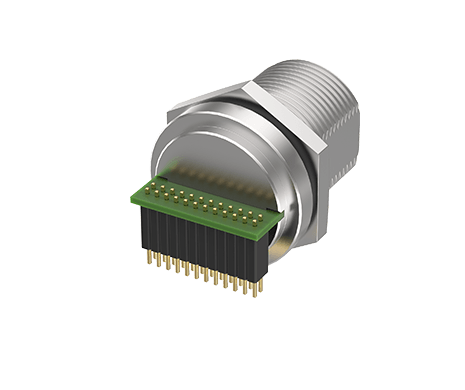

USB 3.2 Gen 2 Type-C Receptacle, Thread-Lock, 24 Pin, R/A DIP, IP68

ATTEND’s waterproof circular USB Type-C connectors and cable assemblies are compliant with USB 3.2 Gen 2, supporting data rates up to 10 Gbps. Featuring IP68-rated protection, secure thread -lock or quick-lock mechanisms, versatile DIP/FPC terminations options, and an extended operating temperature range of −40°C to +85°C, this series provides reliable connectivity for critical automation, transportation, and field applications.
Share:

MAIN FEATURES

Sealed USB C Conn.

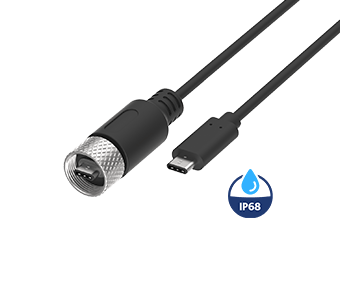

ATTEND Waterproof USB-C Connectors and Cable Assemblies

  • IP68-rated protection against dust and water ingress

  • Compliant with USB 3.2 Gen 2, supporting data rates up to 10 Gbps

  • Available with Thread-Lock and Quick-Lock options

  • Available with right-angle DIP or FPC cable connections

  • Current rating: 3 A max. for VBUS/GND contacts and 1 A max. for other contacts

  • High durability with up to 3,500 mating cycles

  • Wide operating temperature range: −40°C to +85°C

APPLICATIONS

Applications of Waterproof USB-C Connectors and Cable Assemblies in Heavy-Duty Equipment

  • Industrial Automation Equipment

  • Robotics and AGV/AMR Systems

  • Transportation Equipment

  • Heavy-Duty Equipment

  • Outdoor Vision and Surveillance Systems

SPECIFICATION

ELECTRICAL
Current Rating3A Max. for Vbus and GND, 1A for other.
Voltage Rating20VDC
Insulation Resistance10MΩ
Dielectric Withstanding Voltage100VAC
MECHANICAL
Durability3,500 Cycle
Mating Force5 to 20N
Un-mating Force6 to 20N
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Storage temperature range-40°C~+85°C
Waterproof LevelIP68

DOWNLOAD

CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing222A-04003171 KBPDF: DrawingDownload
