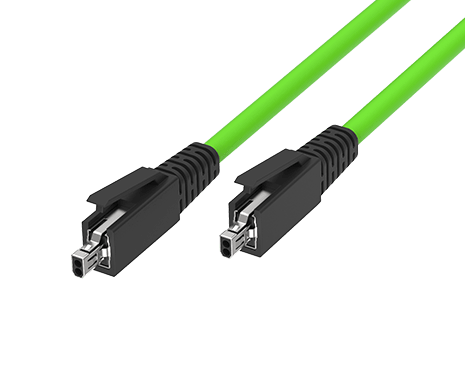

SPE IP20 2Pin Female-to-Female Cable, 100cm
SPE-1P1P-10003
SPE IP20 2 PIN Female to Female Cable, 100 CM
ATTEND ’s T1 Industrial SPE connector and cable assembly series delivers next-generation Single Pair Ethernet (SPE) technology for modern industrial applications. Featuring advanced SPE architecture, these high-performance solutions provide compact, lightweight, and cost-effective Ethernet transmission with reliable signal integrity.
Compliant with IEEE 802.3 SPE T1 and IEC 63171-2, -5, and -6 standards, ATTEND’s T1 Industrial solutions ensure broad interoperability across industrial devices, cabling systems, and network infrastructures while supporting data rates from 10 Mbps up to 1 Gbps for Industrial Automation, Robotics, Machine Vision, Smart Factory, and IIoT applications.
ATTEND ’s T1 Industrial SPE connector and cable assembly series delivers next-generation Single Pair Ethernet (SPE) technology for modern industrial applications. Featuring advanced SPE architecture, these high-performance solutions provide compact, lightweight, and cost-effective Ethernet transmission with reliable signal integrity.
Compliant with IEEE 802.3 SPE T1 and IEC 63171-2, -5, and -6 standards, ATTEND’s T1 Industrial solutions ensure broad interoperability across industrial devices, cabling systems, and network infrastructures while supporting data rates from 10 Mbps up to 1 Gbps for Industrial Automation, Robotics, Machine Vision, Smart Factory, and IIoT applications.
Share:
MAIN FEATURES
-
Fully compliant with IEC 63171-5 specifications
-
Supports PoDL with power delivery up to 50W
-
Industrial-grade SFTP 22 AWG single-pair cable with rugged TPU jacket.
-
IP68 rated when mated with compatible connectors
-
Supports data transmission frequencies up to 600 MHz
-
Can be customized for different applications to meet specific customer requirements
APPLICATIONS
-
Industrial Automation
-
Robotics / AGV / AMR Systems
-
Machine Vision
-
Smart Building
-
Industrial Sensors & Actuators
-
Railway & Transportation Systems
SPECIFICATION
| Connector design | SPE 2 Pin Female to Female Cable |
|---|---|
| Type standard | IEC 63171-2 |
| Version | Straight |
| Cable outlet | Ø5.0 mm |
| Mechanical operation | 100 Mating cycles |
| Termination | Solder + Over Mold |
|---|---|
| Connection cross-section | AWG 22 × 2C |
| Current Rating | 3.5A |
| Voltage Rating | 60VDC |
| Operating temperature range | -20°C ~ +80°C |
|---|---|
| Degree of protection | IP20 |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | SPE-1P1P-10003 | 341 KB | PDF: Drawing |  |
