Blade Battery Conn., Female DIP Vertical, 6P, IP67, 30A

304B-6406SN1

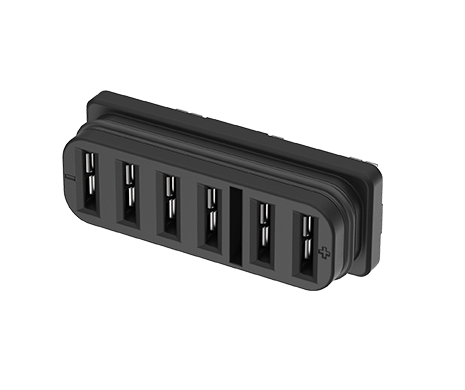

Blade Battery Connector, Female, DIP, Vertical, H=11.5, 6 Pin, IP67, 30A

ATTEND's Waterproof High-Current Battery Connectors deliver compact, reliable, and high-performance interconnect solutions for rechargeable battery systems. Supporting up to 30A per power contact and featuring IP67-rated protection, low contact resistance, and robust mechanical retention, they ensure stable power transmission in harsh environments. Ideal for Battery Management Systems, e-bikes, drones, AGVs/AMRs, robotics, battery-powered tools, industrial equipment, and other rechargeable battery applications.
Share:

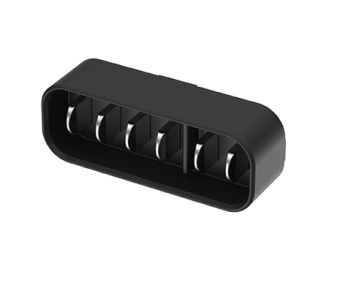

Mating Parts and Available Accessories

MAIN FEATURES

Waterproof Blade Connectors

  • 6 Power Pin or 4 Power Pin + 9 Signal Pin configurations

  • Current rating: 30A (Power Pin) / 5A (Signal Pin)

  • IP67-rated waterproof and dustproof protection

  • Low contact resistance for reliable power transmission

  • Up to 3,000 mating cycles for long-term reliability

  • Wide operating temperature range: -40°C to +105°C

APPLICATIONS

Unmanned Aerial Vehicle Systems

  • Battery Management Systems

  • Industrial Drones / Unmanned Aerial Vehicle Systems

  • Robotics and Automation Systems

  • Battery-Powered Tools

  • Electric Bicycles & Electric Scooters

  • Portable Power Systems

SPECIFICATION

ELECTRICAL
Current Rating30A
Voltage Rating60VDC
Contact Resistance30mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability3,000 Cycle
Mating Force8kg
Unmating Force0.5kg
ENVIRONMENTAL
Operating temperature range-40°C~+125°C
Storage temperature range-40°C~+125°C
SOLDER ABILITY
Recommended IR Reflow Temperature245°C

DOWNLOAD

CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing304B-6406SN1163 KBPDF: DrawingDownload
3D304B-6406SN1186 KBZIP: 3D FileDownload
