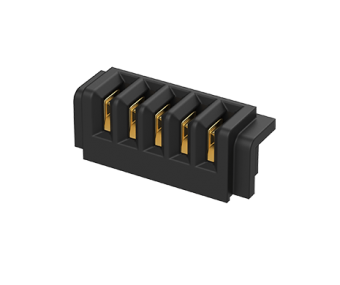

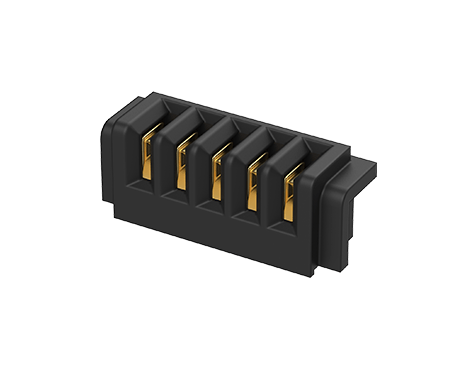

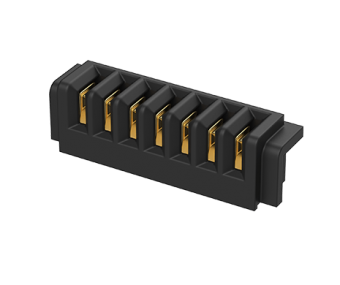

Blade Battery Conn., Female, 2.5mm, H5.5, XX=03-10Pin

304A-25XXSC2

Blade Battery connector, Female, Pitch 2.5, Tube, H5.5, XX=03-10Pin

ATTEND's Blade Battery Connectors are engineered to deliver compact, reliable, and high-performance interconnect solutions for rechargeable battery systems. Available in multiple pitch and height options with flexible design configurations, the connectors feature low contact resistance, robust mechanical retention, and stable power transmission for long-term mating reliability. Designed to simplify battery integration and maintenance, ATTEND's Blade Battery Connectors are ideal for portable electronics, industrial equipment, medical devices, smart home products, rugged handheld devices, battery-powered tools, and other rechargeable applications.
Share:
Mating Parts and Available Accessories

MAIN FEATURES

Blade Connectors

  • Current rating: 7 A / 30 V

  • Flexible combinations of keying features and grounding pin configurations

  • Compact design for space-constrained applications

  • Secure electrical contact with low contact resistance

  • High durability for repeated mating cycles

MATING CONFIGURATIONS
MATING CONFIGURATIONS

APPLICATIONS

Medical and Healthcare Devices

  • Industrial Tablets and Docking Systems

  • Drone Ground Control Systems

  • Robotics Docking Systems

  • Portable Test Equipment

  • Medical and Healthcare Devices

  • Automated Test Equipment

SPECIFICATION

ELECTRICAL
Current Rating7A
Voltage Rating30VDC
Contact Resistance40mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability4,000 Cycle
Mating Force400g max.
Unmating Force30g max.
Contact Retention Force300g
ENVIRONMENTAL
Operating temperature range-40°C~+105°C
Storage temperature range-40°C~+105°C
SOLDER ABILITY
Recommended IR Reflow Temperature260°C

DOWNLOAD

CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing304A-25XXSC2422 KBPDF: DrawingDownload
3D304A-2505SC2441 KBZIP: 3D FileDownload
3D304A-2507SC2604 KBZIP: 3D FileDownload
Datasheet304A-25XXSC2 Spec660 KBPDF:SpecDownload
