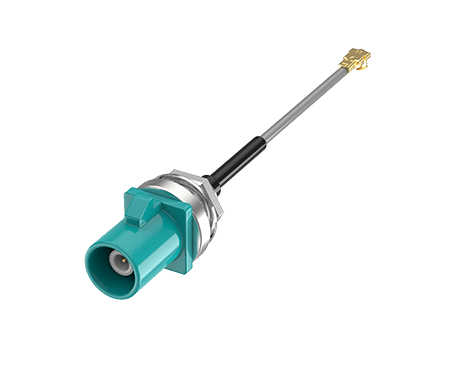

FAKRA Plug to IPEX Cable IP67, L=250mm, Z
FR-1P1P-025Z01W
FAKRA Plug to IPEX Cable IP67, L=250mm, Z Code
ATTEND’s FAKRA Waterproof Cable Assemblies provide high-performance RF connectivity for demanding automotive and industrial applications. Featuring IP67 protection when properly mated and compliance with ISO 20860-2, SAE/USCAR-2, and USCAR-17, the cable assemblies support RF frequencies ranging from DC to 6 GHz and offer reliable protection against water, dust, and vibration. Engineered for stable signal transmission and dependable performance in harsh environments, ATTEND’s FAKRA Waterproof Cable Assemblies are ideal for automotive cameras, ADAS, GPS, antennas, and other outdoor or mobile applications.
ATTEND’s FAKRA Waterproof Cable Assemblies provide high-performance RF connectivity for demanding automotive and industrial applications. Featuring IP67 protection when properly mated and compliance with ISO 20860-2, SAE/USCAR-2, and USCAR-17, the cable assemblies support RF frequencies ranging from DC to 6 GHz and offer reliable protection against water, dust, and vibration. Engineered for stable signal transmission and dependable performance in harsh environments, ATTEND’s FAKRA Waterproof Cable Assemblies are ideal for automotive cameras, ADAS, GPS, antennas, and other outdoor or mobile applications.
Share:
MAIN FEATURES
- Frequency Range: up to 6 GHz
- Meets ISO 20860-2, SAE/USCAR-2, and USCAR-17 standards
- Robust plastic housings provide high resistance to harsh automotive environments
- Provides IP67 protection when properly mated, ensuring reliable sealing against water and dust in harsh environments.
- Customizable configurations to meet specific application requirements
- Operating Temperature Range: −40°C to +105°C (−40°C to +90°C for FAKRA Plug to IPEX Cable)
APPLICATIONS
- Automotive Telematics and Infotainment Systems
- Advanced Driver Assistance Systems (ADAS)
- GPS, Satellite Radio, and Antenna Connections
- Industrial Wireless Communication Networks
- IIoT Devices in Harsh Environments
- V2X Communication Systems
- Industrial Automation
- Unmanned Transport Systems (AGVs/AMRs)
- Intelligent Transportation Systems
- Agricultural Machinery
APPLICATION SCENARIOS
CODE OPTIONS
| Code | Jack | RAL No. Color | Application (Europe) | Application (USCAR) |
| A |  | 9005 Jet Black | Radio without phantom supply | |
| B |  | 9001 Cream | Radio with phantom supply | |
| C |  | 5005 Signal Blue | GPS / Navigation | GPS |
| D |  | 4004 Claret Violet | GSM | |
| E |  | 6002 Leaf Green | TV / SDARS Terrestrial | |
| F |  | 8011 Nut Brown | TV / SDARS Terrestrial / Camera | |
| G |  | 7031 Blue Gray | Remote Keyless Entry | SDARS Terrestrial |
| Code | Jack | RAL No. Color | Application (Europe) | Application (USCAR) |
| H |  | 4003 Heather Violet | GPS / Navigation | |
| I |  | 1001 Beige | Remote | Bluetooth / VPM |
| K |  | 1027 Curry | Diversity radio | SDARS Satellite |
| L |  | 3002 Carmine Red | Undefined | VPM |
| M |  | 2003 Pastel Orange | Undefined | RKE / TPMS |
| N |  | 6019 Pastel Green | Undefined | DSRC / VPM |
| Z |  | 5021 Water Blue | Universal (Neutral) Code | |
SPECIFICATION
| Style | FAKRA to MHF 1 |
|---|---|
| 1st Connector | FAKRA Plug |
| 1st Contact Gender | Male |
| 2nd Connector | I-PEX MHF 1 |
| 2nd Contact Gender | MHF Wire |
| Cable Color | Gray |
| Cable OD | 1.37mm |
|---|---|
| Cable Type | Coaxial Cable |
| Compliance | RoHS |
| Length | 250mm |
| Mating Cycles | ≧10 |
| Coding | FAKRA Z Code |
|---|---|
| Frequency Range | DC to 6 GHz |
| Impedance | 50Ω |
| Operating Temperature Range | -40°C to +90°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | FR-1P1P-025Z01W | 69 KB | PDF: Drawing |  |
