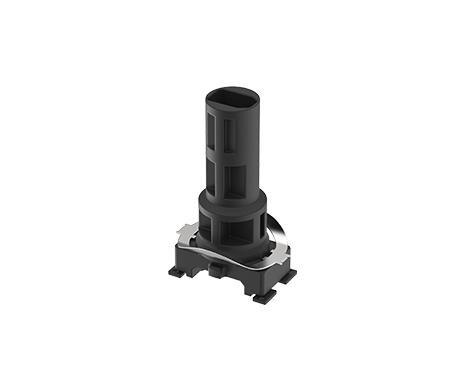

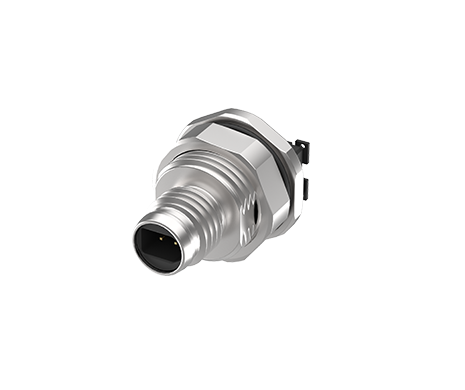

M8 SPE Two Piece Insert, 2Pin Male Straight SMD
229B-02MS01
M8 SPE Two Piece Insert, 2Pin Male Straight SMD
ATTEND ’s T1 Industrial SPE connector and cable assembly series delivers next-generation Single Pair Ethernet (SPE) technology for modern industrial applications. Featuring advanced SPE architecture, these high-performance solutions provide compact, lightweight, and cost-effective Ethernet transmission with reliable signal integrity.
Compliant with IEEE 802.3 SPE T1 and IEC 63171-2, -5, and -6 standards, ATTEND’s T1 Industrial solutions ensure broad interoperability across industrial devices, cabling systems, and network infrastructures while supporting data rates from 10 Mbps up to 1 Gbps for Industrial Automation, Robotics, Machine Vision, Smart Factory, and IIoT applications.
ATTEND ’s T1 Industrial SPE connector and cable assembly series delivers next-generation Single Pair Ethernet (SPE) technology for modern industrial applications. Featuring advanced SPE architecture, these high-performance solutions provide compact, lightweight, and cost-effective Ethernet transmission with reliable signal integrity.
Compliant with IEEE 802.3 SPE T1 and IEC 63171-2, -5, and -6 standards, ATTEND’s T1 Industrial solutions ensure broad interoperability across industrial devices, cabling systems, and network infrastructures while supporting data rates from 10 Mbps up to 1 Gbps for Industrial Automation, Robotics, Machine Vision, Smart Factory, and IIoT applications.
Share:

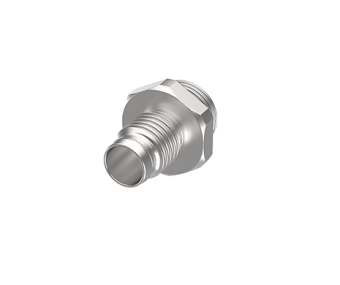

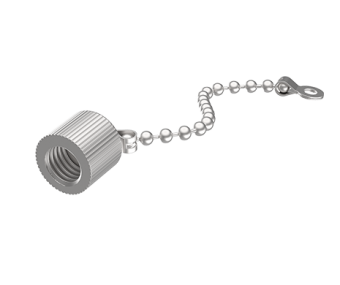

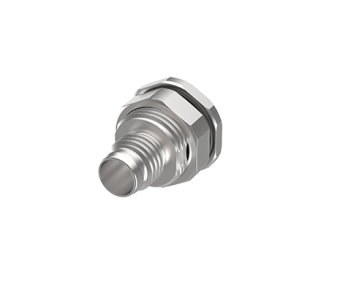

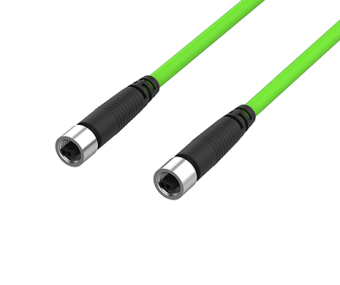

Mating Parts and Available Accessories
MAIN FEATURES
-
Compliant with IEEE 802.3 BASE-T1 standards
-
Supports data transmission rates up to 10 Mbps or 1 Gbps
-
Fully compliant with IEC 63171-5 specification
-
Supports PoDL with power delivery up to 50W
-
IP68 rated when mated with compatible connectors.
-
Operating temperature range: -40°C to +85°C
APPLICATIONS
-
Industrial Automation
-
Robotics / AGV / AMR Systems
-
Machine Vision
-
Smart Building
-
Industrial Sensors & Actuators
-
Railway & Transportation Systems
SPECIFICATION
| Current Rating | 4A |
|---|---|
| Voltage Rating | 72VDC |
| Contact Resistance | 20mΩ max. |
| Shell Resistance | 100mΩ max. |
| Insulation Resistance | 500MΩ |
| Voltage Proof | 1,000VDC |
| Durability | 750 Cycle |
|---|---|
| Insertion Force | 30N max. |
| Pull Out Force | 30N max. |
| Operating Temperature Range | -40°C~+85°C |
|---|---|
| Storage Temperature Range | -40°C~+85°C |
