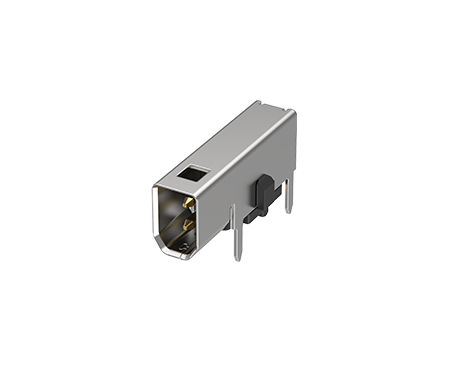

• Connector Solutions 229A-R202
  • Connector Solutions 229A-R202

SPE IP20 Jack, 2PIN R/A DIP

229A-R202

SPE IP20 Jack, 2PIN R/A DIP

ATTEND ’s T1 Industrial SPE connector and cable assembly series delivers next-generation Single Pair Ethernet (SPE) technology for modern industrial applications. Featuring advanced SPE architecture, these high-performance solutions provide compact, lightweight, and cost-effective Ethernet transmission with reliable signal integrity.
Compliant with IEEE 802.3 SPE T1 and IEC 63171-2, -5, and -6 standards, ATTEND’s T1 Industrial solutions ensure broad interoperability across industrial devices, cabling systems, and network infrastructures while supporting data rates from 10 Mbps up to 1 Gbps for Industrial Automation, Robotics, Machine Vision, Smart Factory, and IIoT applications.
Share:

MAIN FEATURES

SPE-M8-main-feature

  • Compliant with IEEE 802.3 BASE-T1 standards

  • Supports data transmission rates up to 10 Mbps or 1 Gbps

  • Fully compliant with IEC 63171-2 specification

  • Supports PoDL with power delivery up to 50W

  • Operating temperature range: -40°C to +85°C

APPLICATIONS

Applications

  • Industrial Automation

  • Robotics / AGV / AMR Systems

  • Machine Vision

  • Smart Building

  • Industrial Sensors & Actuators

  • Railway & Transportation Systems

SPECIFICATION

ELECTRICAL
Current Rating4A
Voltage Rating60VDC
Contact Resistance20mΩ max.
Shell Resistance100mΩ max.
Insulation Resistance500MΩ
Voltage Proof500VDC
MECHANICAL
Durability1000 Cycle
Insertion Force20N max.
Pull Out Force20N max.
ENVIRONMENTAL
Operating Temperature Range-40°C~+85°C
Storage Temperature Range-40°C~+85°C

DOWNLOAD

CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing229A-R202316 KBPDF: DrawingDownload
3D229A-R202161 KBZIP: 3D FileDownload
Datasheet229A-R202 Spec307 KBPDF:SpecDownload
