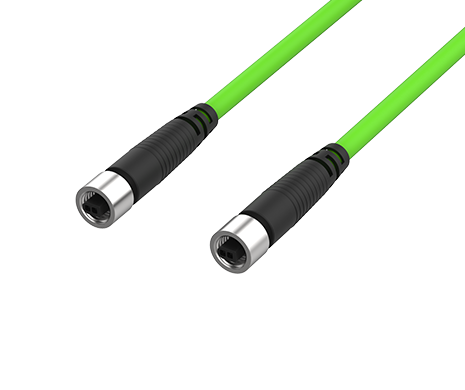

M8 SPE 2PIN Female to Female Cable, 1M

Name: SPE-2R2R-10001
Brand: ATTEND
Availability: InStock

SPE-2R2R-10001

M8 SPE 2PIN Female to Female Cable, 1M

ATTEND ’s T1 Industrial SPE connector and cable assembly series delivers next-generation Single Pair Ethernet (SPE) technology for modern industrial applications. Featuring advanced SPE architecture, these high-performance solutions provide compact, lightweight, and cost-effective Ethernet transmission with reliable signal integrity.
Compliant with IEEE 802.3 SPE T1 and IEC 63171-2, -5, and -6 standards, ATTEND’s T1 Industrial solutions ensure broad interoperability across industrial devices, cabling systems, and network infrastructures while supporting data rates from 10 Mbps up to 1 Gbps for Industrial Automation, Robotics, Machine Vision, Smart Factory, and IIoT applications.

MAIN FEATURES

Fully compliant with IEC 63171-5 speciﬁcations
Supports PoDL with power delivery up to 50W
Industrial-grade SFTP 22 AWG single-pair cable with rugged TPU jacket.
IP68 rated when mated with compatible connectors
Supports data transmission frequencies up to 600 MHz
Can be customized for different applications to meet specific customer requirements

APPLICATIONS

Industrial Automation
Robotics / AGV / AMR Systems
Machine Vision
Smart Building
Industrial Sensors & Actuators
Railway & Transportation Systems

SPECIFICATION

MECHANICAL
Connector design	M8 SPE cable connector
Type standard	IEC 63171-5
Version	Straight
Connector locking system	Screw
Cable outlet	5.0 mm
Mechanical operation	100 Mating cycles
