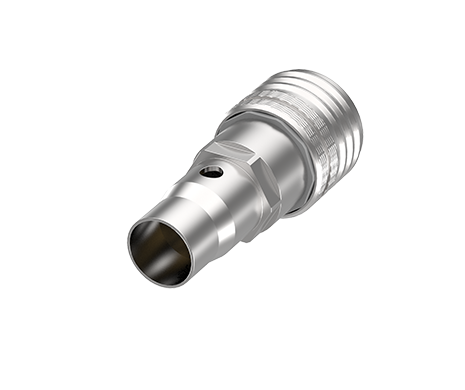

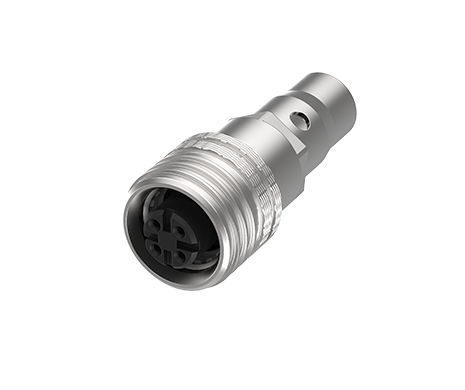

M12 D-Code Plug, XX Pin, Push-Pull, Female, G/F, Overmold
216D-XXFO1
M12 D-Code Plug for Cable, XX Pin Push-Pull, Female for Overmold, G/F
ATTEND’s M12 Push-Pull Type Connector System is a modern connectivity solution designed for quick, secure, and tool-free mating. Fully compliant with IEC 61076-2-010, it ensures mechanical compatibility and global standardization. Available in A-code (4, 5, 8, and 12-pin), D-code (4,5-pin) and X-code (8-pin) configurations, it supports a wide range of power, signal, and high-speed data applications. Unlike traditional threaded M12 connectors, the Push-Pull mechanism enables effortless insertion and release, significantly reducing installation time while maintaining a reliable and robust connection.
ATTEND’s M12 Push-Pull Type Connector System is a modern connectivity solution designed for quick, secure, and tool-free mating. Fully compliant with IEC 61076-2-010, it ensures mechanical compatibility and global standardization. Available in A-code (4, 5, 8, and 12-pin), D-code (4,5-pin) and X-code (8-pin) configurations, it supports a wide range of power, signal, and high-speed data applications. Unlike traditional threaded M12 connectors, the Push-Pull mechanism enables effortless insertion and release, significantly reducing installation time while maintaining a reliable and robust connection.
Share:
MAIN FEATURES
-
Compliant with IEC 61076-2-010 for global standard compatibility.
-
Push-Pull locking mechanism enables fast, tool-free mating and unmating.
-
The receptacle is intermateable with IEC 61076-2-101 threaded cable plugs
-
Flexible modular design for easy assembly and maintenance
-
Multiple coding options to support diverse communication protocols
-
High ingress protection and electromagnetic compatibility (EMC)
-
Space-saving and reliable connection suitable for harsh industrial environments
APPLICATIONS
-
Industrial Automation
-
Transportation & Rail Systems
-
Ethernet & Fieldbus Communication
-
Agriculture and Outdoor Equipment
-
Machinery and Telecommunications
-
Medical Devices
| Part Number | Mating P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 216D-04FO1 | 216D-04MSA+216-00M0B-02 216D-04MRA+216-00M0B-02 216D-04MO1 216D-04MF2 |  | 4Pin |
| Part Number | Mating P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 216D-05FO1 | 216D-05MSA+216-00M0B-02 216D-05MRA+216-00M0B-02 216D-05MO1 216D-05MF2 |  | 5Pin |
SPECIFICATION
| 4Pin Current Rating | 4 A |
|---|---|
| 4Pin Voltage Rating | 250V |
| 5Pin Current Rating | 4 A |
| 5Pin Voltage Rating | 60V |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Waterproof Level | IP67 |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 216D-XXFO1 | 285 KB | PDF: Drawing |  |
| 3D | 216D-04FO1 | 2102 KB | ZIP: 3D File | |
| 3D | 216D-05FO1 | 2128 KB | ZIP: 3D File | |
| Datasheet | 216 Push-Pull Series Spec | 116 KB | PDF:Spec | |
