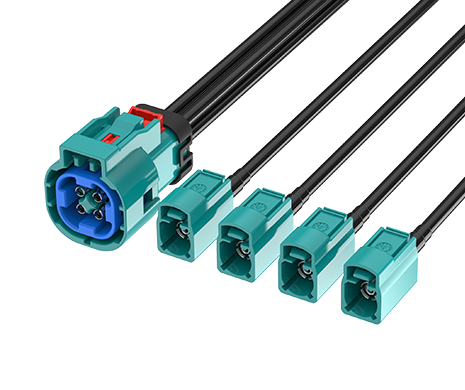

Mini FAKRA A Jack 2x2 to FAKRA Jack x4, L=1000CM, IP67, Z
FR-1J4J-100Z01W
ATTEND Mini FAKRA Waterproof Connectors and Cable Assemblies provide ultra-compact solutions for space-constrained applications. Featuring a reduced footprint versus standard FAKRA, they enable high-density layouts while maintaining robust mechanical and RF performance.
Rated to IP67 when properly mated and compliant with ISO 20860-1/2, SAE/USCAR-2, and USCAR-17, the series supports frequencies up to 15 GHz and delivers reliable resistance to water, dust, and vibration—ideal for automotive cameras, ADAS, GPS, radar, and other outdoor or mobile applications.
MAIN FEATURES
-
Frequency range: up to 15 GHz
-
Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards
-
Robust plastic housings provide high resistance to harsh automotive environments
-
Provides IP67 protection when properly mated, ensuring reliable sealing against water and dust in harsh environments.
-
Mini FAKRA connectors are up to 80% smaller than standard FAKRA, ideal for compact, high-density automotive electronics
-
Mini FAKRA cable assemblies can be customized to meet specific application requirements
-
Operating temperature range: −40°C to +105°C
APPLICATIONS
-
Automotive Telematics and Infotainment Systems
-
Advanced Driver Assistance Systems (ADAS)
-
GPS, Satellite Radio, and Antenna Connections
-
Industrial Wireless Communication Networks
-
IIoT Devices in Harsh Environments
-
V2X Communication Systems
-
Industrial Automation
-
Unmanned Transport Systems (AGVs/AMRs)
-
Intelligent Transportation Systems
-
Agricultural Machinery
APPLICATION SCENARIOS
SPECIFICATION
| Style | Mini FAKRA to FAKRA |
|---|---|
| 1st Connector | Mini FAKRA Type A(2x2) |
| 1st Contact Gender | Female |
| 2nd Connector | FAKRA |
| 2nd Contact Gender | Female |
| Cable Color | Black |
| Cable OD | 3.3mm |
|---|---|
| Cable Type | RTK031 |
| Compliance | SAE/USCAR-2, RoHS |
| Length | 100 cm |
| Mating Cycles | ≥ 25 |
| Coding | Mini FAKRA Type A/FAKRA Z Code |
|---|---|
| Data Rate | Up to 8 Gbps |
| Frequency Range | DC to 6 GHz |
| Impedance | 50Ω |
| Operating Temperature Range | -40°C to +105°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | FR-1J4J-100Z01W | 101 KB | PDF: Drawing |  |
