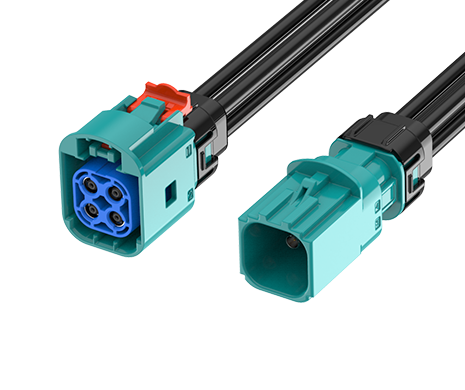

Mini FAKRA B Jack 2x2 to Plug 2x2, L=100CM, IP67, Z
FR-1J1P-100Z05W
ATTEND Mini FAKRA Waterproof Connectors and Cable Assemblies provide ultra-compact solutions for space-constrained applications. Featuring a reduced footprint versus standard FAKRA, they enable high-density layouts while maintaining robust mechanical and RF performance.
Rated to IP67 when properly mated and compliant with ISO 20860-1/2, SAE/USCAR-2, and USCAR-17, the series supports frequencies up to 9 GHz and delivers reliable resistance to water, dust, and vibration—ideal for automotive cameras, ADAS, GPS, radar, and other outdoor or mobile applications.
MAIN FEATURES
-
Frequency range: up to 9 GHz
-
Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards
-
Robust plastic housings provide high resistance to harsh automotive environments
-
Provides IP67 protection when properly mated, ensuring reliable sealing against water and dust in harsh environments.
-
Mini FAKRA connectors are up to 80% smaller than standard FAKRA, ideal for compact, high-density automotive electronics
-
Mini FAKRA cable assemblies can be customized to meet specific application requirements
-
Operating temperature range: −40°C to +105°C
APPLICATIONS
-
Automotive Telematics and Infotainment Systems
-
Advanced Driver Assistance Systems (ADAS)
-
GPS, Satellite Radio, and Antenna Connections
-
Industrial Wireless Communication Networks
-
IIoT Devices in Harsh Environments
-
V2X Communication Systems
-
Industrial Automation
-
Unmanned Transport Systems (AGVs/AMRs)
-
Intelligent Transportation Systems
-
Agricultural Machinery
APPLICATION SCENARIOS
SPECIFICATION
| Style | Mini FAKRA to Mini FAKRA |
|---|---|
| 1st Connector | Mini FAKRA Type B(2x2) |
| 1st Contact Gender | Female |
| 2nd Connector | Mini FAKRA Type B(2x2) |
| 2nd Contact Gender | Male |
| Cable Color | Black |
| Cable OD | 3.3mm |
|---|---|
| Cable Type | RTK031 |
| Compliance | SAE/USCAR-2, RoHS |
| Length | 100 cm |
| Mating Cycles | ≥ 25 |
| Coding | Mini FAKRA Type B Z Code |
|---|---|
| Frequency Range | DC to 9 GHz |
| Impedance | 50Ω |
| Operating Temperature Range | -40°C to +105°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | FR-1J1P-100Z05W | 111 KB | PDF: Drawing |  |
