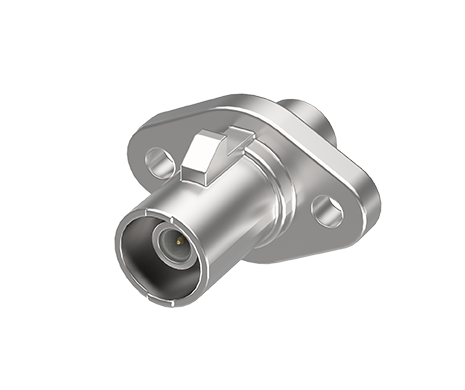

FAKRA to SMB Adapter, IP67&IP69K, 3u"

Name: 228C-PSZ2
Brand: ATTEND
Availability: InStock

228C-PSZ2

FAKRA to SMB Adapter, IP67&IP69K, 3u"

ATTEND’s Automotive Camera FAKRA Connectivity Solution provide reliable high-speed signal transmission for in-vehicle camera systems. Designed for demanding automotive environments such as ADAS, surround view, and rear-view camera applications, these connectors feature secure locking, robust EMI shielding, proven mechanical durability, and IP67-rated protection against dust and water ingress. Fully compliant with SAE/USCAR-2, USCAR-17, ISO 20860-1, and ISO 20860-2, they ensure compatibility with existing automotive coaxial cable infrastructures and meet stringent electrical, mechanical, and environmental requirements for high-reliability automotive deployments.

MAIN FEATURES

Frequency Range: DC to 6 GHz
Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards
Effective EMI shielding for reliable signal integrity.
IP67& 69K dust and water protection ( FAKRA Adapter )
Boss-free design for simplified signal layout. (SMB Connector)
Operating Temperature Range: −40°C to +105°

APPLICATIONS

Surround-view cameras
Front-view cameras
Rear-view cameras
Rear-view mirror cameras
Blind-spot detection
Driver-monitoring systems

Protocols
FPD-Link III/IV
GMSL 2/3
MIPI
ASA
GVIF

**Coaxial Camera Connectors Cable Compatibility Table**
FAKRA Adapter Part Number	Mating Part Number	Cable Part Number

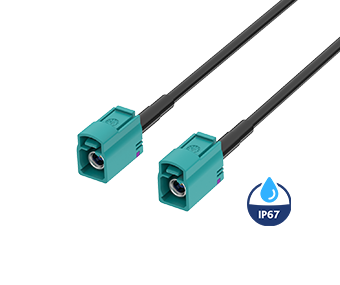

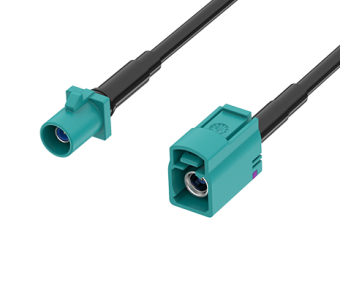

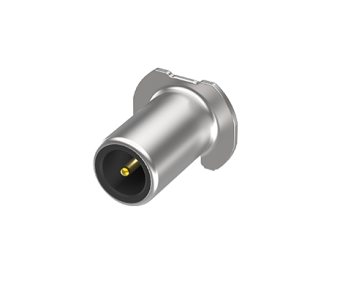

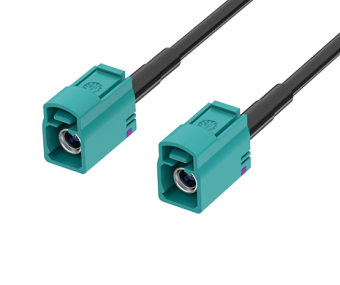

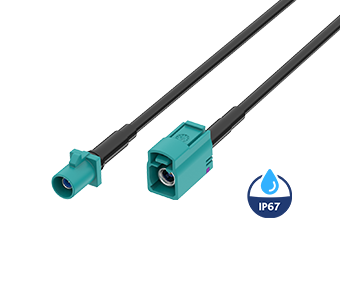

228C-PSZ2	228C-PS01	FR-1J1P-100Z01W (FAKRA Jack to Plug, IP67) FR-1J1J-100Z01W (FAKRA Jack to Jack, IP67)

SPECIFICATION

ELECTRICAL
Current Rating	3A
Voltage Rating	250V
Contact Resistance	20 mΩ inital, 40 mΩ after
Insulation Resistance	1000 MΩ
Dielectric Withstanding Voltage	500VAC
Impedance	50Ω
