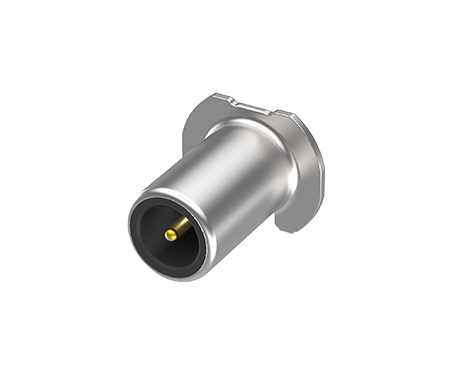

SMB PCB Mount Connector, 3u"

228C-PS01

SMB PCB Mount Connector, 3u"

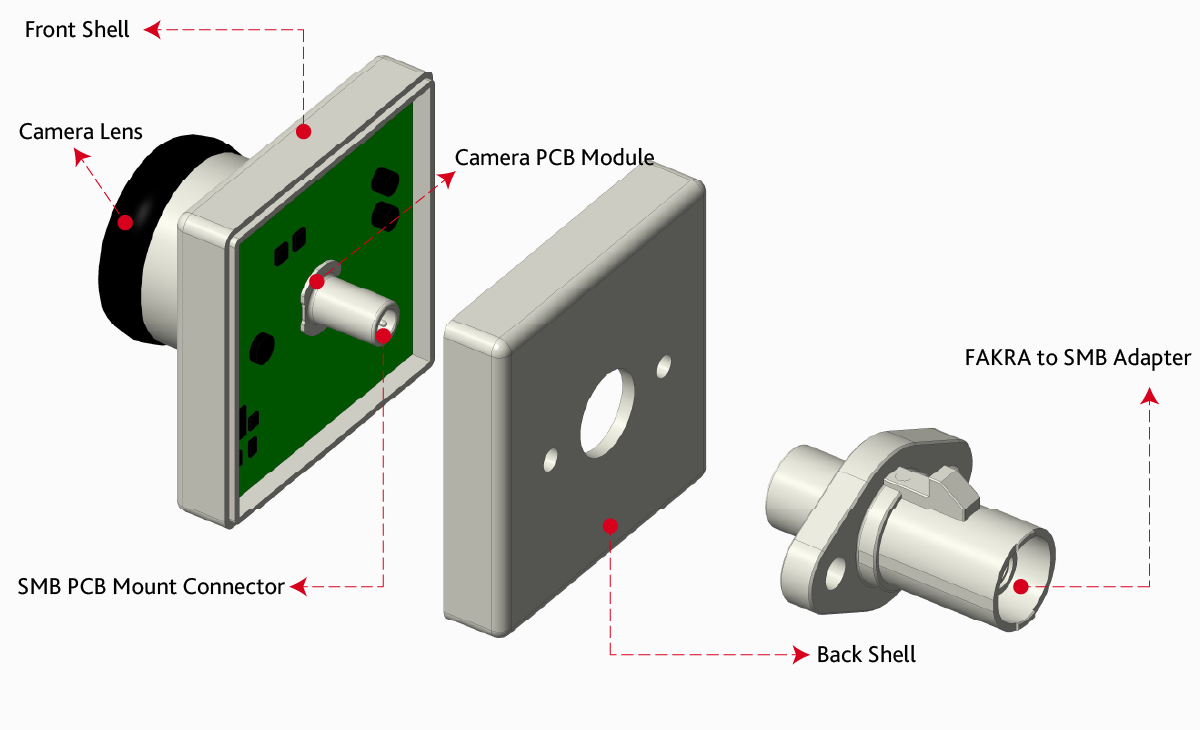

ATTEND’s Automotive Camera FAKRA Connectivity Solution provide reliable high-speed signal transmission for in-vehicle camera systems. Designed for demanding automotive environments such as ADAS, surround view, and rear-view camera applications, these connectors feature secure locking, robust EMI shielding, proven mechanical durability, and IP67-rated protection against dust and water ingress. Fully compliant with SAE/USCAR-2, USCAR-17, ISO 20860-1, and ISO 20860-2, they ensure compatibility with existing automotive coaxial cable infrastructures and meet stringent electrical, mechanical, and environmental requirements for high-reliability automotive deployments.

MAIN FEATURES

Frequency Range: DC to 6 GHz
Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards
Effective EMI shielding for reliable signal integrity.

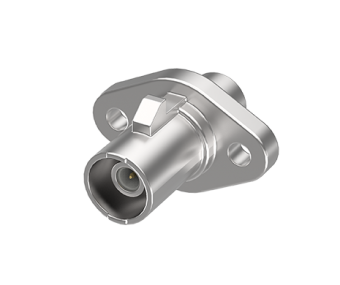

IP67& 69K dust and water protection ( FAKRA Adapter )
Boss-free design for simplified signal layout. (SMB Connector)
Operating Temperature Range: −40°C to +105°

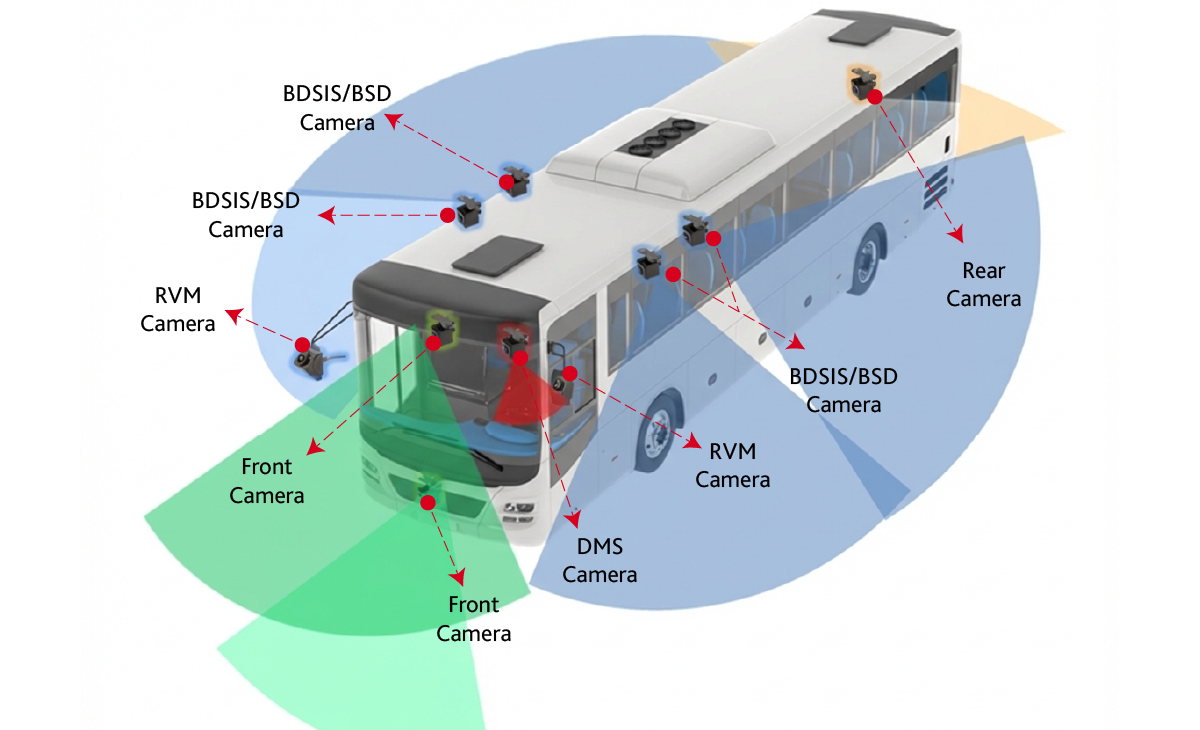

APPLICATIONS

Surround-view cameras
Front-view cameras
Rear-view cameras
Rear-view mirror cameras
Blind-spot detection
Driver-monitoring systems

Protocols
FPD-Link III/IV
GMSL 2/3
MIPI
ASA
GVIF

SPECIFICATION

ELECTRICAL
Current Rating	3A
Voltage Rating	250V
Contact Resistance	20 mΩ inital, 40 mΩ after
Insulation Resistance	1000 MΩ
Dielectric Withstanding Voltage	500VAC
Impedance	50Ω
