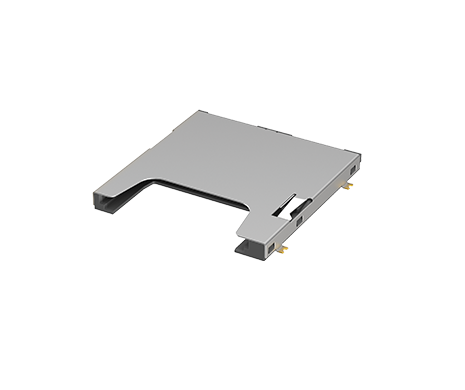

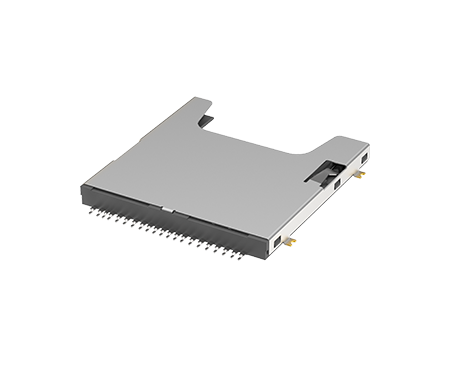

SD7.0 Express Socket, Push-Push Type, G/F
104I-TA02
SD7.0 Express Socket, Push-Push Type, G/F

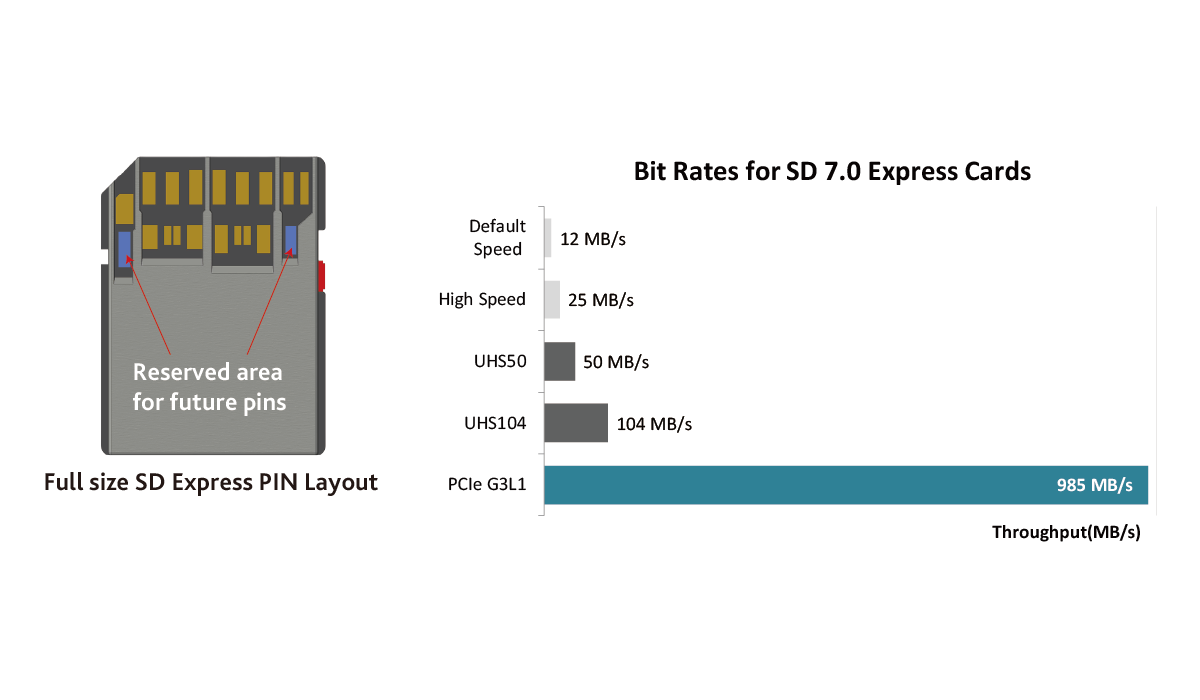

ATTEND’s SD 7.0 Sockets support SD Express cards based on the SD 7.0 specification, integrating PCIe Gen3 x1 with NVMe and UHS-I interfaces to deliver data transfer speeds of up to 985 MB/s while maintaining backward compatibility with SD, SDHC, SDXC, and UHS-I cards. Leveraging mature PCIe and NVMe ecosystems, the sockets enable reduced development effort and faster system integration. Designed in the standard SD form factor, they feature dedicated high-speed differential contacts, controlled impedance, and pin detection functionality to enhance card protection and ensure reliable card recognition upon insertion, making them well suited for high-resolution industrial imaging, high-speed data logging, edge computing, and embedded systems.
ATTEND’s SD 7.0 Sockets support SD Express cards based on the SD 7.0 specification, integrating PCIe Gen3 x1 with NVMe and UHS-I interfaces to deliver data transfer speeds of up to 985 MB/s while maintaining backward compatibility with SD, SDHC, SDXC, and UHS-I cards. Leveraging mature PCIe and NVMe ecosystems, the sockets enable reduced development effort and faster system integration. Designed in the standard SD form factor, they feature dedicated high-speed differential contacts, controlled impedance, and pin detection functionality to enhance card protection and ensure reliable card recognition upon insertion, making them well suited for high-resolution industrial imaging, high-speed data logging, edge computing, and embedded systems.
Share:
MAIN FEATURES
-
Supports SD Express (SD 7.0) with PCIe Gen3 x1 and NVMe protocol
-
Data transfer speeds of up to 985 MB/s
-
Backward compatible with SD, SDHC, SDXC, and UHS-I cards
-
Integrated UHS-I interface for legacy support
-
Pin detection ensures safer insertion and stable card reading
APPLICATIONS
-
High-resolution dash cameras
-
8K video capture and playback
-
RAW continuous burst photography
-
Drone video capture and onboard data analysis
-
Multi-channel Internet-of-Things (IoT) devices
-
Autonomous driving and automotive storage applications
-
Remote monitoring and security inspection systems
-
360° video recording
SPECIFICATION
| Current Rating | 1A per pin |
|---|---|
| Operating Voltage | 30V |
| Contact Resistance | 100mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 5,000 Cycle |
|---|---|
| Insertion Force | 40N max. |
| Extraction Force | 0.5N min. |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Storage temperature range | -40°C~+85°C |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 104I-TA02 | 458 KB | PDF: Drawing |  |
| 3D | 104I-TA02 | 1892 KB | RAR: 3D File | |
