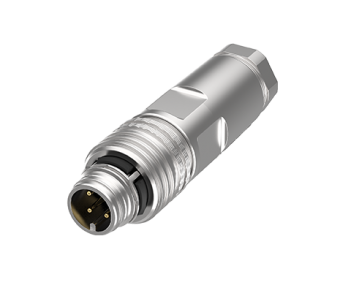

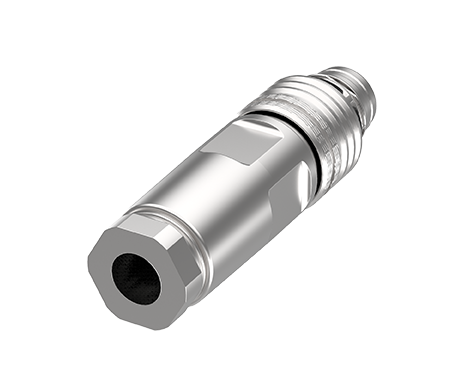

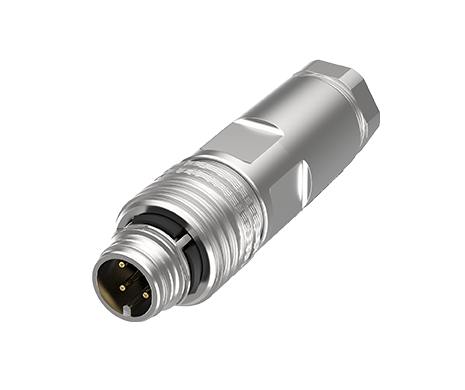

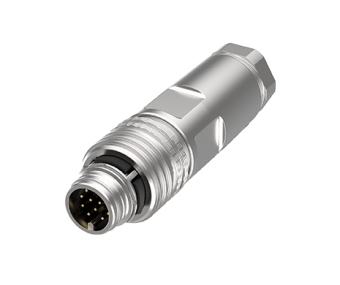

M12 A Code Cable Plug, XX Pin Male, Field Installable
216A-XXMF2
M12 A Code, Plug for Cable, XX Pin Male Pins for Field Installable
ATTEND’s M12 Push-Pull Cable Plugs Field Installable Series is a fast, secure, and tool-free connectivity solution. Fully compliant with IEC 61076-2-010, it supports A-code (4, 5, 8, 12-pin) and X-code (8-pin) for power, signal, and high-speed data applications. The Click-In Locking, mold-free, field-installable design enables effortless on-site assembly, reducing installation time and complexity. Unlike traditional threaded M12 connectors, the Push-Pull mechanism ensures reliable, robust connections, ideal for automation, robotics, and harsh industrial environments.
ATTEND’s M12 Push-Pull Cable Plugs Field Installable Series is a fast, secure, and tool-free connectivity solution. Fully compliant with IEC 61076-2-010, it supports A-code (4, 5, 8, 12-pin) and X-code (8-pin) for power, signal, and high-speed data applications. The Click-In Locking, mold-free, field-installable design enables effortless on-site assembly, reducing installation time and complexity. Unlike traditional threaded M12 connectors, the Push-Pull mechanism ensures reliable, robust connections, ideal for automation, robotics, and harsh industrial environments.
Share:

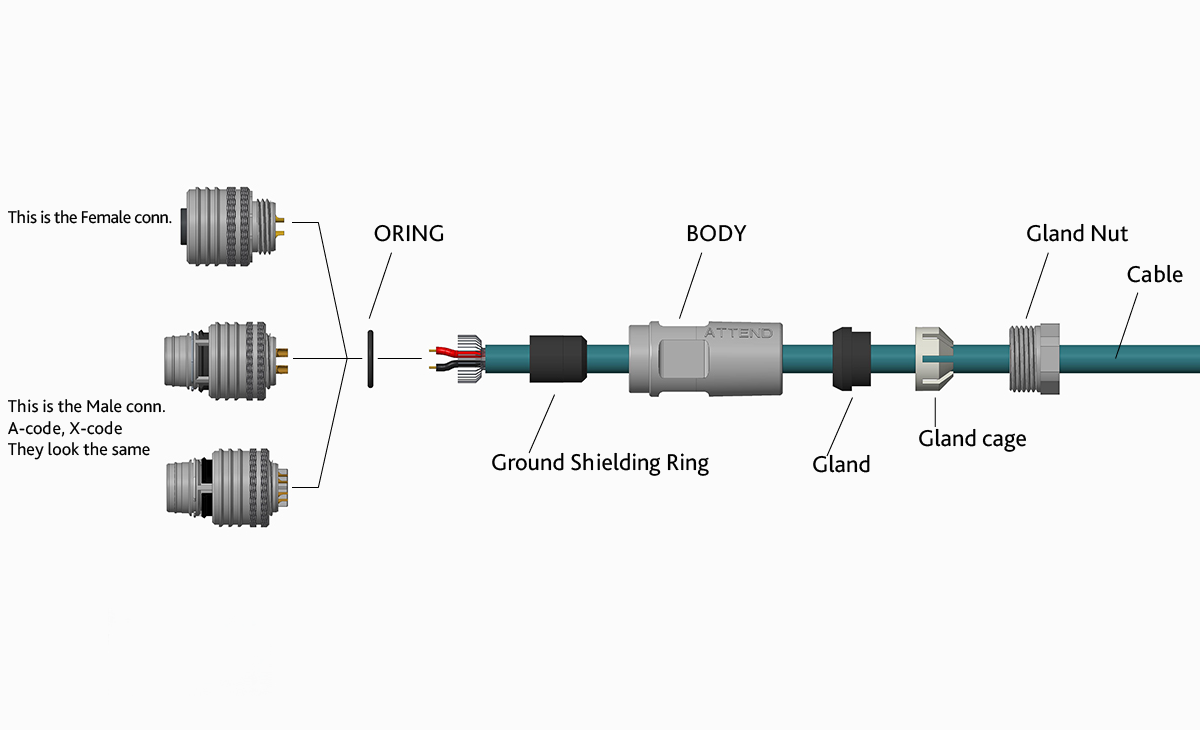

MAIN FEATURES
-
Compliant with IEC 61076-2-010 for global standard compatibility.
-
Push-Pull locking mechanism enables fast, tool-free mating and unmating.
-
Field-installable and mold-free for quick on-site assembly.
-
Supports A-code (4,5,8,12-pin) and X-code (8-pin) for power, signal, and high-speed data.
-
High ingress protection and electromagnetic compatibility (EMC)
-
Space-saving and reliable connection suitable for harsh industrial environments
APPLICATIONS
-
Industrial Automation
-
Transportation & Rail Systems
-
Ethernet & Fieldbus Communication
-
Agriculture and Outdoor Equipment
-
Machinery and Telecommunications
-
Medical Devices
| Part Number | Mating P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 216A-04MF2 | 216A-04FSA+216-00F0B-03 216A-04FRA+216-00F0B-03 216A-04FO1 |  | 4Pin |
| 216A-05MF2 | 216A-05FSA+216-00F0B-03 216A-05FRA+216-00F0B-03 216A-05FO1 |  | 5Pin |
| Part Number | Mating P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 216A-08MF2 | 216A-08FSA+216-00F0B-03 216A-08FRA+216-00F0B-03 216A-08FO1 |  | 8Pin |
| 216A-12MF2 | 216A-12FSA+216-00F0B-03 216A-12FO1 |  | 12Pin |
SPECIFICATION
| 4Pin Current Rating | 4 A |
|---|---|
| 4Pin Voltage Rating | 250V |
| 5Pin Current Rating | 4 A |
| 5Pin Voltage Rating | 60V |
| 8Pin Current Rating | 2 A |
| 8Pin Voltage Rating | 30V |
| 12Pin Current Rating | 1.5 A |
| 12Pin Voltage Rating | 30V |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Waterproof Level | IP67 |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 216A-04MF2 | 202 KB | PDF: Drawing |  |
| 3D | 216A-04MF2 | 1853 KB | RAR: 3D File | |
| Drawing | 216A-05MF2 | 205 KB | PDF: Drawing | |
| 3D | 216A-05MF2 | 1877 KB | RAR: 3D File | |
| Drawing | 216A-08MF2 | 205 KB | PDF: Drawing | |
| 3D | 216A-08MF2 | 1913 KB | RAR: 3D File | |
| Drawing | 216A-12MF2 | 206 KB | PDF: Drawing | |
| 3D | 216A-12MF2 | 1965 KB | RAR: 3D File | |
| Datasheet | 216A-XXMF2 Spec | 374 KB | PDF:Spec | |
