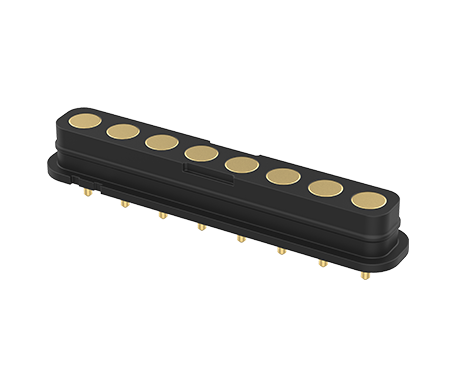

Machine Pin Waterproof, 8P H3.0, 2.5mm, DIP, 30u", IP67
303C-C3018-25-08
Machine Pin Waterproof, IP67, 8 Pin, H3.0, Pitch 2.5mm, DIP, 30u", Black
ATTEND’s IP67 Waterproof Pogo Pin connectors feature gold-plated surfaces and a durable structural design, offering excellent current transmission and protection against water and dust ingress. Designed for rugged environments, they ensure long-term reliability in outdoor devices, industrial equipment, and testing applications, delivering innovative connection solutions for competitive designs.
ATTEND’s IP67 Waterproof Pogo Pin connectors feature gold-plated surfaces and a durable structural design, offering excellent current transmission and protection against water and dust ingress. Designed for rugged environments, they ensure long-term reliability in outdoor devices, industrial equipment, and testing applications, delivering innovative connection solutions for competitive designs.
Share:
MAIN FEATURES
ATTEND’s Pogo Pin connectors are engineered for superior performance and reliability, making them ideal for various applications such as consumer electronics, industrial equipment, medical devices, and testing interfaces.
- High Stroke: Offers excellent flexibility, ensuring reliable connections even under dynamic conditions.
- High Durability: Built to endure thousands of usage cycles, maintaining optimal performance over time.
- Long Lifetime: Crafted with premium materials to guarantee extended operational longevity.
- Ease of Attaching: Simplified design for quick and secure installation.
- Stable Current Flow: Ensures consistent and efficient power and signal transmission.
Applications:
- Antenna Systems
- Board-to-Board Connections
- Medical Devices
- Tracking Devices
- Portable Electronics
| Product Comparison Overview | ||||
| Variation | Pin Count | Working Height | Current Rating | Voltage Rating |
| Single | 1 Pin | 2.6-6.8mm | 1-2A | 12-30V |
| Multiple | 2-4 Pin | 3.9-7.0mm | 1-2A | 12-30V |
| Magnetic&Waterproof | 2-8 Pin | 4.0-5.7mm | 2-3A | 5-24V |
| Magnetic | 2-4 Pin | 4.0-6.0mm | 1-3A | 5-12V |
SPECIFICATION
| Current Rating | 3A per pin |
|---|---|
| Voltage Rating | 24V AC/DC |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 20,000 Cycles |
|---|
| Operating temperature range | -40°C~+85°C |
|---|---|
| Storage temperature range | -40°C~+85°C |
| Waterproof Level | IP67 |
| Recommended IR Reflow Temperature | 250°C, 10Sec |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| 3D | 303C-C3018-25-08 | 20 KB | RAR: 3D File |  |
| Drawing | 303C-C3018-25-08 | 936 KB | PDF: Drawing | |
| Datasheet | 303C-C3018-25-08 Spec | 518 KB | PDF:Spec | |
