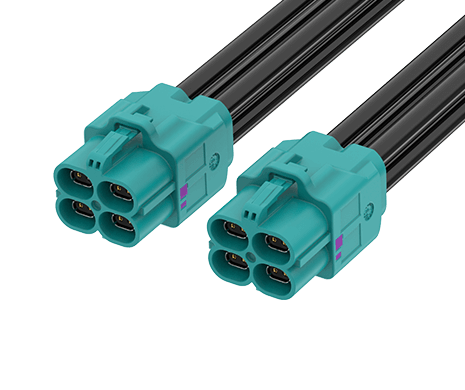

HS-MTP Jack(2x2) to Jack(2x2) Cable, L=100CM, Z
MTP-1J1J-100Z03
HS-MTP Jack(2x2) to Jack(2x2) Cable, L=100 CM, Z CODE
ATTEND’s HS-MTP (High-Speed Modular Twisted-Pair) connector and cable assembly system delivers a high-speed, automotive-grade differential solution. Supporting frequencies up to 20 GHz, it accommodates ADAS, cameras, radar/lidar, and 4K or higher-resolution camera systems. Its modular design is compatible with shielded/unshielded twisted pair and high-performance cables, ensuring signal integrity, EMI protection, and future-proof connectivity. Compliant with USCAR-2, USCAR-17, Open Alliance TC9 and IEEE 802.3ch standards, it provides robust, space-saving, and reliable performance for current and next-generation automotive and industrial applications.
ATTEND’s HS-MTP (High-Speed Modular Twisted-Pair) connector and cable assembly system delivers a high-speed, automotive-grade differential solution. Supporting frequencies up to 20 GHz, it accommodates ADAS, cameras, radar/lidar, and 4K or higher-resolution camera systems. Its modular design is compatible with shielded/unshielded twisted pair and high-performance cables, ensuring signal integrity, EMI protection, and future-proof connectivity. Compliant with USCAR-2, USCAR-17, Open Alliance TC9 and IEEE 802.3ch standards, it provides robust, space-saving, and reliable performance for current and next-generation automotive and industrial applications.
Share:
MAIN FEATURES
-
Supports High-speed differential transmission, optimized for automotive Ethernet (1000BASE-T1, 2.5G/5G/10GBASE-T1).
-
Meets USCAR-2, USCAR-17 , Open Alliance TC9 and IEEE 802.3ch standards.
-
Robust plastic housings provide high resistance to harsh automotive environments.
-
Multiple mechanical codings prevent mismating and enable easy identification.
-
Provides superior EMI/RFI protection in electrically noisy environments.
-
Supports STP/UTP cables for high-speed differential signals.
-
Operating Temperature Range:−40°C to +105°C
APPLICATIONS
-
ADAS System
-
4K and Higher Camera Systems
-
Autonomous Driving
-
High-Resolution Displays
-
Rear Seat Entertainment
APPLICATION SCENARIOS
CODE OPTIONS
| Code | Plug | Jack | RAL No. Color | Application (Europe) | Application (USCAR) |
| A |  |  | 9005 Jet Black | Radio without phantom supply | |
| B |  |  | 9001 Cream | Radio with phantom supply | |
| C |  |  | 5005 Signal Blue | GPS / Navigation | GPS |
| D |  |  | 4004 Claret Violet | GSM | |
| E |  |  | 6002 Leaf Green | TV / SDARS Terrestrial | |
| F |  |  | 8011 Nut Brown | TV / SDARS Terrestrial / Camera | |
| G |  |  | 7031 Blue Gray | Remote Keyless Entry | SDARS Terrestrial |
| Code | Plug | Jack | RAL No. Color | Application (Europe) | Application (USCAR) |
| H |  |  | 4003 Heather Violet | GPS / Navigation | |
| J |  |  | 1001 Beige | Remote | Bluetooth / VPM |
| K |  |  | 1027 Curry | Diversity radio | SDARS Satellite |
| L |  |  | 3002 Carmine Red | Undefined | VPM |
| M |  |  | 2003 Pastel Orange | Undefined | RKE / TPMS |
| O |  |  | 6027 Light Gree | Undefined | DSRC / VPM |
| Z |  |  | 5021 Water Blue | Universal (Neutral) Code | |
SPECIFICATION
| Style | MTP (2x2) to MTP (2x2) |
|---|---|
| 1st Connector | HS-MTP Jack (2x2) |
| 1st Contact Gender | Female |
| 2nd Connector | HS-MTP Jack (2x2) |
| 2nd Contact Gender | Female |
| Cable Color | Black |
| Cable OD | Approx. 3.8 mm |
|---|---|
| Cable Type | Coaxial, 26 AWG × 2C + AB |
| Compliance | ISO 20860-1/2, SAE/USCAR-2, RoHS |
| Length | 100 cm |
| Mating Cycles | ≥ 25 |
| Coding | HS-MTP Jack (2x2) (Z-Code) |
|---|---|
| Data Rate | Up to 8 Gbps |
| Frequency Range | DC to 6 GHz |
| Impedance | 100 Ω |
| Operating Temperature Range | -40°C to +105°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | MTP-1J1J-100Z03 | 107 KB | PDF: Drawing |  |
