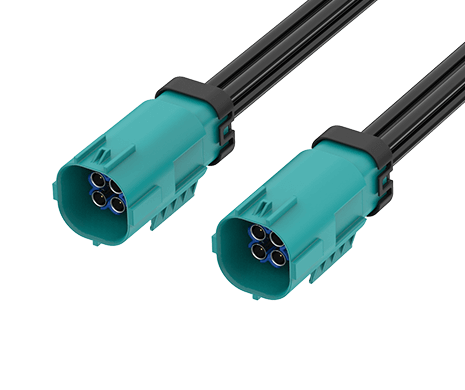

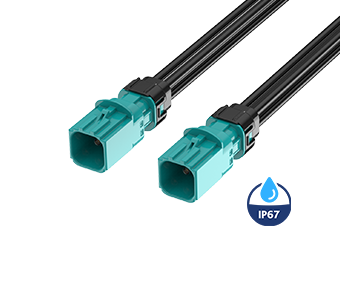

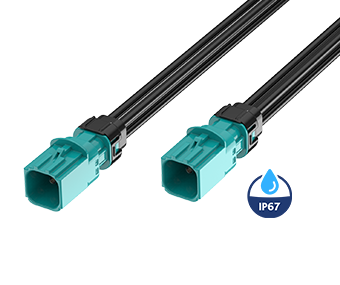

Mini FAKRA Plug(2x2) Cable, Type A, L=100CM, IP67, Z
FR-1P1P-100Z01W
Mini FAKRA Type A, Plug(2x2) Cable, IP67, L=100 CM, Z CODE

ATTEND’s Mini FAKRA connectors and cable assemblies provide reliable, high-performance RF connectivity solutions tailored for demanding automotive and industrial environments. Engineered to withstand harsh conditions such as vibration, temperature extremes, moisture, and dust, Mini FAKRA products ensure secure, consistent signal transmission for critical communication systems.

The Mini FAKRA connectors and cable assemblies offering emphasize durability, compliance with automotive standards such as ISO 20860-1/2, SAE/USCAR-2, and USCAR-17, and flexibility to meet the unique system requirements for trusted, cutting-edge RF connectivity in space-constrained automotive and industrial applications.
Share:
MAIN FEATURES
Mini FAKRA Connectos

  • Frequency range: up to 15 GHz

  • Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards

  • Robust plastic housings provide high resistance to harsh automotive environments

  • 13 color and mechanical coding options plus 1 neutral variant to prevent mismating

  • Mini FAKRA connectors are up to 80% smaller than standard FAKRA, ideal for compact, high-density automotive electronics

  • Supports single, dual, and quad connector configurations to maximize PCB space and installation flexibility

  • Mini FAKRA cable assemblies can be customized to meet specific application requirements

  • Operating temperature range: −40°C to +105°C

APPLICATIONS

Agricultural Vehicles
  • Automotive Telematics and Infotainment Systems
  • Advanced Driver Assistance Systems (ADAS)
  • GPS, Satellite Radio, and Antenna Connections
  • Industrial Wireless Communication Networks
  • IIoT Devices in Harsh Environments
  • V2X Communication Systems
  • Industrial Automation
  • Unmanned Transport Systems (AGVs/AMRs)
  • Intelligent Transportation Systems
  • Agricultural Machinery


APPLICATION SCENARIOS






CODE OPTIONS

CodeJackRAL No.
Color		Application
(Europe)		Application
(USCAR)
AMini FAKRA connector coding guide9005
Jet Black		Radio without phantom supply
BMini FAKRA connector coding guide9001
Cream		Radio with phantom supply
CMini FAKRA connector coding guide5005
Signal Blue		GPS / NavigationGPS
DMini FAKRA connector coding guide4004
Claret Violet		GSM
EMini FAKRA connector coding guide6002
Leaf Green		TV / SDARS Terrestrial
FMini FAKRA connector coding guide8011
Nut Brown		TV / SDARS Terrestrial / Camera
CodeJackRAL No.
Color		Application
(Europe)		Application
(USCAR)
GMini FAKRA connector coding guide7031
Blue Gray		Remote Keyless EntrySDARS Terrestrial
HMini FAKRA connector coding guide4003
Heather Violet		GPS / Navigation
JMini FAKRA connector coding guide1001
Beige		RemoteBluetooth / VPM
KMini FAKRA connector coding guide1027
Curry		Diversity radioSDARS Satellite
NMini FAKRA connector coding guide6019
Pastel Green		UndefinedDSRC / VPM
ZMini FAKRA connector coding guide5021
Water Blue		Universal (Neutral) Code
SPECIFICATION
MECHANICAL
StyleMini FAKRA to Mini FAKRA (Straight)
1st ConnectorMini FAKRA Plug (2x2)
1st Contact GenderMale
2nd ConnectorMini FAKRA Plug (2x2)
2nd Contact GenderMale
Cable ColorBlack
MECHANICAL
Cable ODApprox. 3.3 mm
Cable TypeRTK 031 coaxial cable
ComplianceISO 20860-1/-2, SAE/USCAR-2, RoHS
Length100 cm
Mating Cycles≥ 25
ELECTRICAL
CodingMini FAKRA Type A (Z-Code)
Data RateUp to 8 Gbps
Frequency RangeDC–6 GHz
Impedance50 Ω
ENVIRONMENTAL
Operating Temperature Range-40°C to +105°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
DrawingFR-1P1P-100Z01W90 KBPDF: DrawingDownload
