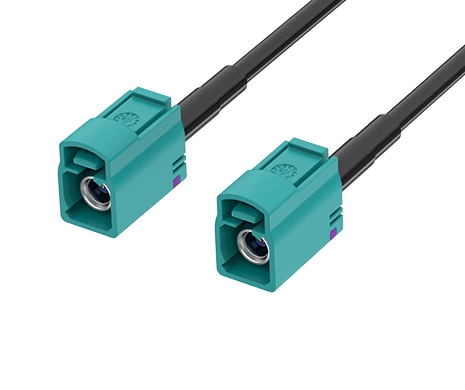

FAKRA Jack to Jack STR Cable, L=100CM, IP69K, Z
FR-1J1J-100Z01W
FAKRA Jack to Jack Straight Cable, IP69K, L=100 CM, Z CODE

ATTEND’s FAKRA connectors and cable assemblies provide reliable, high-performance RF connectivity solutions tailored for demanding automotive and industrial environments. Engineered to withstand harsh conditions such as vibration, temperature extremes, moisture, and dust, FAKRA products ensure secure, consistent signal transmission for critical communication systems.
The FAKRA connectors and cable assemblies offering emphasize durability, compliance with ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards, and flexibility to meet the unique system requirements for trusted, cutting-edge RF connectivity for automotive and industrial applications.
Share:
MAIN FEATURES
Truck applications

  • Frequency Range: DC to 6 GHz

  • Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards

  • Robust plastic housings provide high resistance to harsh automotive environments

  • 13 color and mechanical coding options plus 1 neutral variant to prevent mismating

  • FAKRA cable assemblies can be customized for different applications to meet specific customer requirements

  • Operating Temperature Range: −40°C to +105°C

APPLICATIONS

Agricultural Vehicles
  • Automotive Telematics and Infotainment Systems
  • Advanced Driver Assistance Systems (ADAS)
  • GPS, Satellite Radio, and Antenna Connections
  • Industrial Wireless Communication Networks
  • IIoT Devices in Harsh Environments
  • V2X Communication Systems
  • Industrial Automation
  • Unmanned Transport Systems (AGVs/AMRs)
  • Intelligent Transportation Systems
  • Agricultural Machinery


APPLICATION SCENARIOS





Autonomous Mobile Robot



CODE OPTIONS

CodeJackRAL No. ColorApplication
(Europe)		Application
(USCAR)
A9005
Jet Black		Radio without phantom supply
B9001
Cream		Radio with phantom supply
C5005
Signal Blue		GPS / NavigationGPS
D4004
Claret Violet		GSM
E6002
Leaf Green		TV / SDARS Terrestrial
F8011
Nut Brown		TV / SDARS Terrestrial / Camera
G7031
Blue Gray		Remote Keyless EntrySDARS Terrestrial
CodeJackRAL No. ColorApplication
(Europe)		Application
(USCAR)
H4003
Heather Violet		GPS / Navigation
I1001
Beige		RemoteBluetooth / VPM
K1027
Curry		Diversity radioSDARS Satellite
L3002
Carmine Red		UndefinedVPM
M2003
Pastel Orange		UndefinedRKE / TPMS
N6019
Pastel Green		UndefinedDSRC / VPM
Z5021
Water Blue		Universal (Neutral) Code

SPECIFICATION
MECHANICAL
StyleFAKRA to FAKRA (Straight)
1st ConnectorFAKRA Jack
1st Contact GenderFemale
2nd ConnectorFAKRA Jack
2nd Contact GenderFemale
Cable ColorBlack
MECHANICAL
Cable ODApprox. 3.3 mm
Cable TypeRTK 031 coaxial cable
ComplianceISO 20860-1/-2, SAE/USCAR-2, RoHS
Length100 cm
Mating Cycles≥ 25
ELECTRICAL
Coding14 color/mechanical coding options
Data RateUp to 8 Gbps
Frequency RangeDC–6 GHz
Impedance50Ω
ENVIRONMENTAL
Operating Temperature Range-40°C to +105°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
DrawingFR-1J1J-100Z01W74 KBPDF: DrawingDownload
