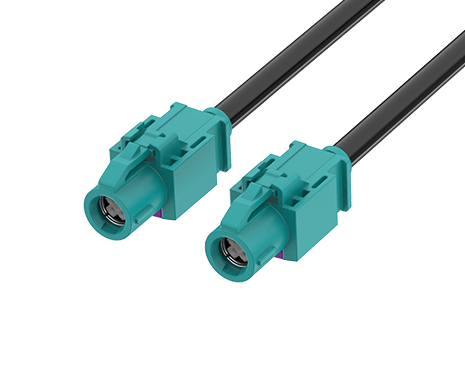

HSD Jack to Jack Cable, 1x1, Straight, L=100 CM
HSD-1J1J-100Z01
HSD Jack to Jack Cable, 1x1, Straight, L=100 CM
ATTEND’s HSD solution is a high-performance, fully shielded interconnect system for high-speed data. It supports LVDS, Ethernet, and USB protocols, providing excellent protection against crosstalk and interference. Featuring 100 Ω fully shielded connectivity, it can be paired with shielded twisted quad cables for robust and reliable signal transmission.
ATTEND’s HSD solution is a high-performance, fully shielded interconnect system for high-speed data. It supports LVDS, Ethernet, and USB protocols, providing excellent protection against crosstalk and interference. Featuring 100 Ω fully shielded connectivity, it can be paired with shielded twisted quad cables for robust and reliable signal transmission.
Share:
MAIN FEATURES
- Supports High-speed differential transmission, suitable for LVDS, USB 2.0, IEEE 1394 and Ethernet.
- Meets USCAR-2, USCAR-17 and IEEE 1394 standards.
- Robust plastic housings provide high resistance to harsh automotive environments.
- Multiple mechanical codings prevent mismating and enable easy identification.
- Provides superior EMI/RFI protection in electrically noisy environments.
- Operating Temperature Range:−40°C to +105°C
APPLICATIONS
- Infotainment System
- Instrument Cluster
- Rear View, Surround View, Side Cameras
- Rear Seat Entertainment
- USB Hub Expansion
- Telematics / TCU
- Audio Systems
APPLICATION SCENARIOS
CODE OPTIONS
| Code | Plug | Jack | RAL No. Color |
| A |  |  | 9015 Jet Black |
| B |  |  | 9011 Cream |
| C |  |  | 5015 Signal Blue |
| D |  | | 4014 Claret Violet |
| Code | Plug | Jack | RAL No. Color |
| E |  |  | 6012 Leaf Green |
| F |  |  | 8011 Nut Brown |
| Z |  |  | 5021 Water Blue |
SPECIFICATION
| Style | HSD to HSD (Straight) |
|---|---|
| 1st Connector | HSD Jack |
| 1st Contact Gender | Female |
| 2nd Connector | HSD Jack |
| 2nd Contact Gender | Female |
| Cable Color | Black |
| Cable OD | Approx. 4.6 mm |
|---|---|
| Cable Type | Coaxial #26AWG × 4C + AB |
| Compliance | ISO 20860-1/-2, SAE/USCAR-2, RoHS |
| Length | 100 cm |
| Mating Cycles | ≥ 25 |
| Coding | HSD Jack (Z-Code) |
|---|---|
| Data Rate | Up to 8 Gbps |
| Frequency Range | DC–6 GHz |
| Impedance | 100 Ω |
| Operating Temperature Range | -40°C to +105°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | HSD-1J1J-100Z01 | 79 KB | PDF: Drawing |  |
