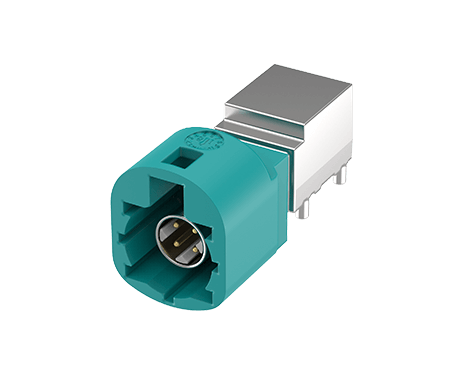

HSD Plug, R/A Type, Key 6/12 O'clock
231A-PXX00
HSD Plug, R/A Type, Available in Key 6 or 12 O'clock
ATTEND’s HSD solution is a high-performance, fully shielded interconnect system for high-speed data. It supports LVDS, Ethernet, and USB protocols, providing excellent protection against crosstalk and interference. Featuring 100 Ω fully shielded connectivity, it can be paired with shielded twisted quad cables for robust and reliable signal transmission.
ATTEND’s HSD solution is a high-performance, fully shielded interconnect system for high-speed data. It supports LVDS, Ethernet, and USB protocols, providing excellent protection against crosstalk and interference. Featuring 100 Ω fully shielded connectivity, it can be paired with shielded twisted quad cables for robust and reliable signal transmission.
Share:
MAIN FEATURES
- Supports High-speed differential transmission, suitable for LVDS, USB 2.0, IEEE 1394 and Ethernet.
- Meets USCAR-2, USCAR-17 and IEEE 1394 standards.
- Robust plastic housings provide high resistance to harsh automotive environments.
- Multiple mechanical codings prevent mismating and enable easy identification.
- Provides superior EMI/RFI protection in electrically noisy environments.
- Operating Temperature Range:−40°C to +105°C
APPLICATIONS
- Infotainment System
- Instrument Cluster
- Rear View, Surround View, Side Cameras
- Rear Seat Entertainment
- USB Hub Expansion
- Telematics / TCU
- Audio Systems
APPLICATION SCENARIOS
CODE OPTIONS
| Code | Plug | Jack | RAL No. Color |
| A |  |  | 9015 Jet Black |
| B |  |  | 9011 Cream |
| C |  |  | 5015 Signal Blue |
| D |  | | 4014 Claret Violet |
| Code | Plug | Jack | RAL No. Color |
| E |  |  | 6012 Leaf Green |
| F |  |  | 8011 Nut Brown |
| Z |  |  | 5021 Water Blue |
PLUG KEYING ORIENTATIONS
| Key | Plug | P/N |
| 12 o'clock |  | 231A-P0X00 |
| Key | Plug | P/N |
| 6 o'clock |  | 231A-P6X00 |
SPECIFICATION
| Impedance | 100Ω |
|---|---|
| Frequence | DC 2.0 GHz |
| Return Loss | ≥ 20dB to 1.0 GHz, ≥ 17dB to 2.0 GHz |
| Insertion Loss | ≤ 0.1 dB at 1.0 GHz |
| Insulation Resistance | 1000MΩ |
| Contact Resistance | 10mΩ Max. |
| Mating Cycles | ≥ 25 cycles |
|---|---|
| Engagement Force | ≤30N |
| Disengagement Force | ≥ 5N |
| Retention Force Latch | ≥ 110N |
| Coding Efficiency | ≥ 80N |
| Operating temperature range | -40°C ~ +105°C |
|---|---|
| Storage temperature range | -40°C ~ +105°C |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 231A-PXX00 | 888 KB | PDF: Drawing |  |
| 3D | 231A-PXX00 | 469 KB | RAR: 3D File | |
